Looking to eliminate guesswork from your fishing game? The Garmin ECHOMAP Ultra 2 162sv Combo Device + GT56 Transducer is your ultimate onboard partner – combining a premium chartplotter, ultra-clear sonar tech, and advanced connectivity in one powerhouse unit. Its 16" HD IPS touchscreen delivers razor-sharp detail in all lighting conditions, and with HDMI output, you can mirror the sonar feed to an external screen – perfect for boats or ice shelters.

The included GT56UHD-TM Transducer offers traditional CHIRP plus Ultra High-Definition ClearVü and SideVü – giving you near-photographic views of the underwater world. Add LiveScope support, and your boat becomes a real-time fishing machine. Seamless wireless syncing with other devices, chartplotter-to-chartplotter data transfer, and voice-controlled trolling motor options give you full control of your setup.

The chartplotter supports Garmin Navionics+ charts with Auto Guidance+ and the advanced Vision+ maps with depth shading and satellite imagery. Quickdraw Contours lets you create and share custom fishing zones straight from the unit using the ActiveCaptain® app.

Features:
• 16" HD IPS touchscreen with buttons – clear visibility even in direct sunlight
• HDMI output – mirror sonar on external displays
• GT56UHD-TM Transducer – CHIRP, ClearVü, and SideVü in Ultra High-Definition
• LiveScope™ compatible – real-time underwater views
• Garmin Navionics+ support – includes 1 year of updates
• Garmin Navionics Vision+ compatible – depth shading, satellite imagery & more
• Quickdraw Contours – map and share your fishing hotspots
• Multi-frequency GPS (10 Hz) – pinpoint positioning
• Bluetooth® and Wi-Fi® – wirelessly connect to Garmin network
• Voice control (optional) – operate Force® trolling motor hands-free
• NMEA 2000® and 0183 compatible – integrate sonar, autopilot, audio, and more
• ActiveCaptain® app – remote access, chart sharing, updates
• Intuitive color themes – easier fish and structure detection

Technical Specs:
• Display size: 34.5 x 19.5 cm (diagonal 39.7 cm)
• Resolution: 1920 x 1080 px
• Dimensions: 43.0 x 26.6 x 8.0 cm
• Weight: 4.31 kg
• Touchscreen + buttons
• Waterproof to IPX7 standard
• Mounting: bracket or flush

Charts & Storage:
• Compatible with: Garmin Navionics+, Vision+, BlueChart g3/Vision, LakeVü g3/Ultra, Quickdraw Contours
• Waypoints: 5,000 | Routes: 100 | Tracks: 50 | Track points: 50,000
• Card slots: 2 x microSD

GPS & Connectivity:
• Supports GPS, GLONASS, Galileo, BeiDou
• Built-in 10 Hz GPS receiver | WAAS capable

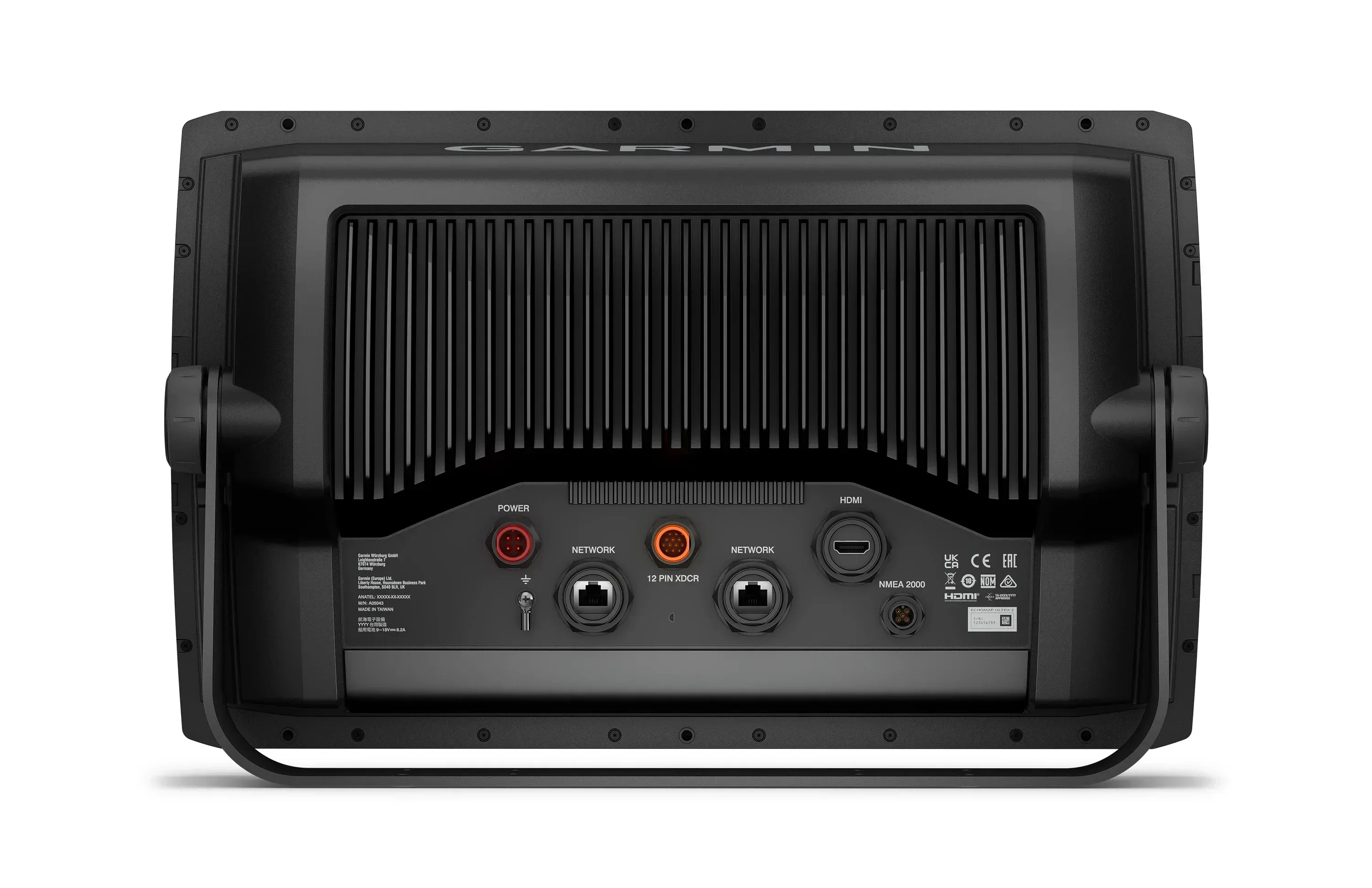

• NMEA 2000® / 0183 | 2 Garmin Marine Network ports
• HDMI and 12-pin sonar connection
• Bluetooth® and Wi-Fi® compatible

Sonar & Frequencies:
• CHIRP sonar: 70/83/200 kHz
• ClearVü & SideVü: 260/455/800/1000/1200 kHz
• Output power: 600 W
• Compatible with Panoptix™, LiveScope™

Package Includes:

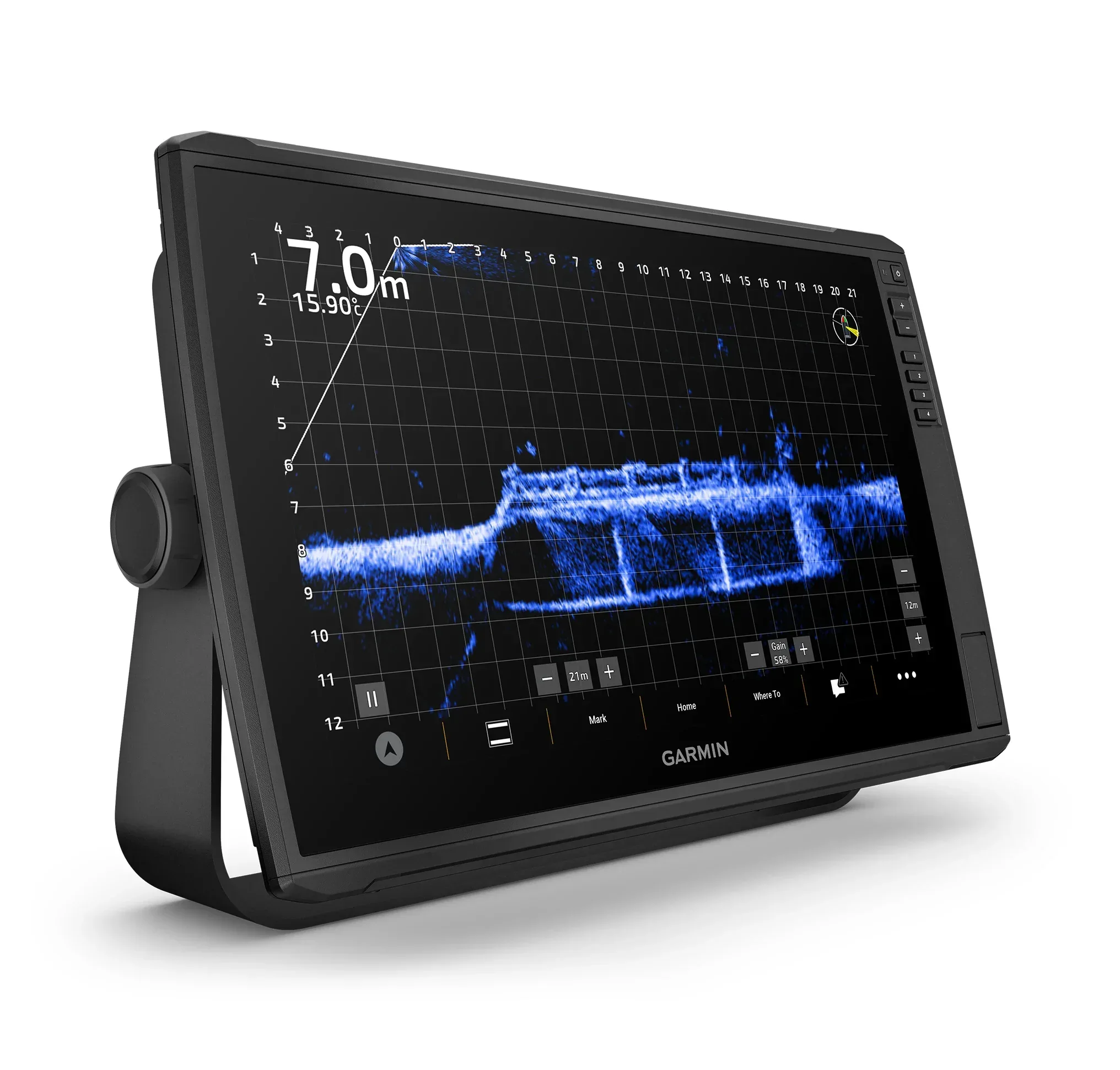

• ECHOMAP Ultra 2 (16") chartplotter
• GT56UHD-TM Ultra High-Definition Transducer
• Power cable
• Mount with knobs

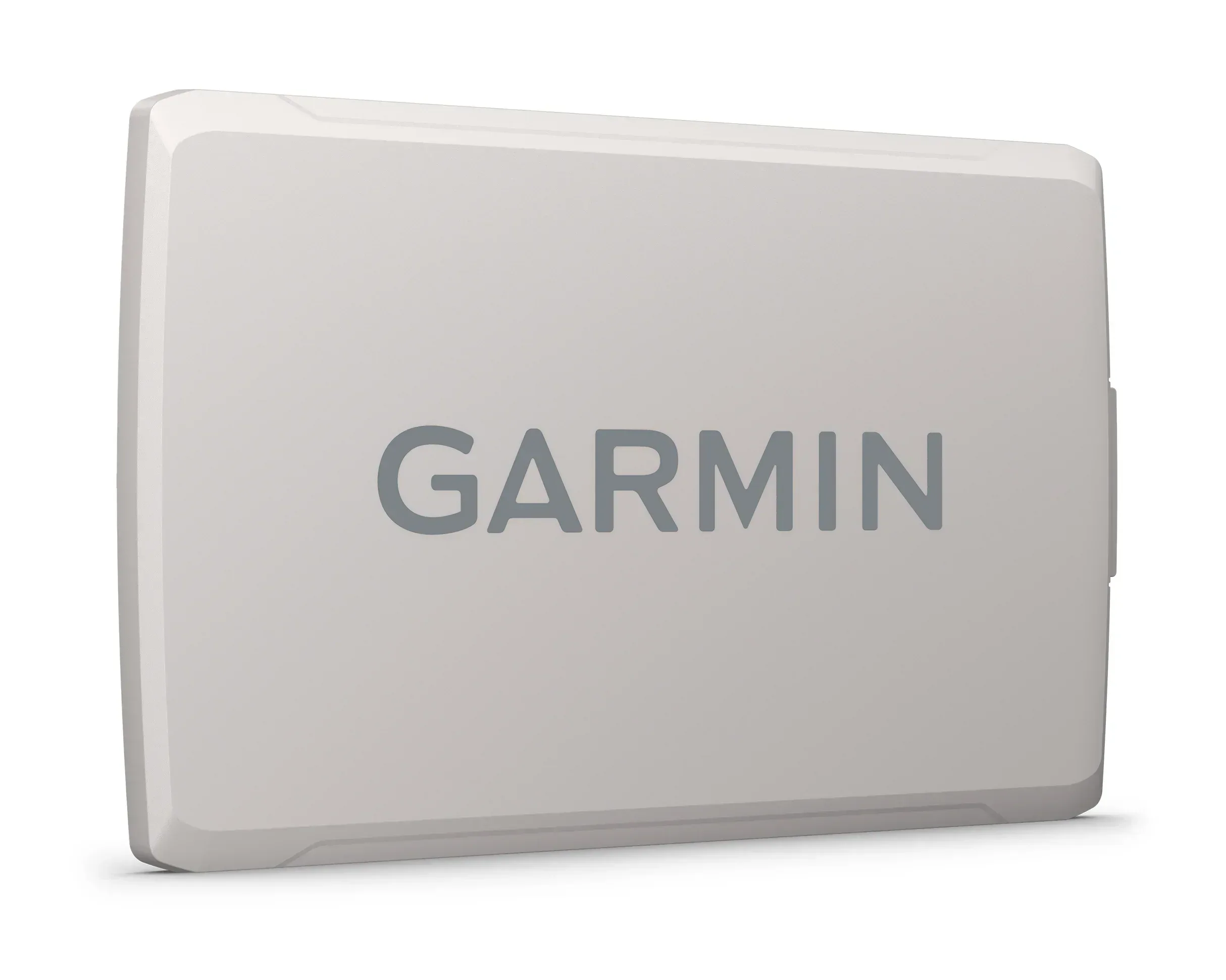

• Protective cover

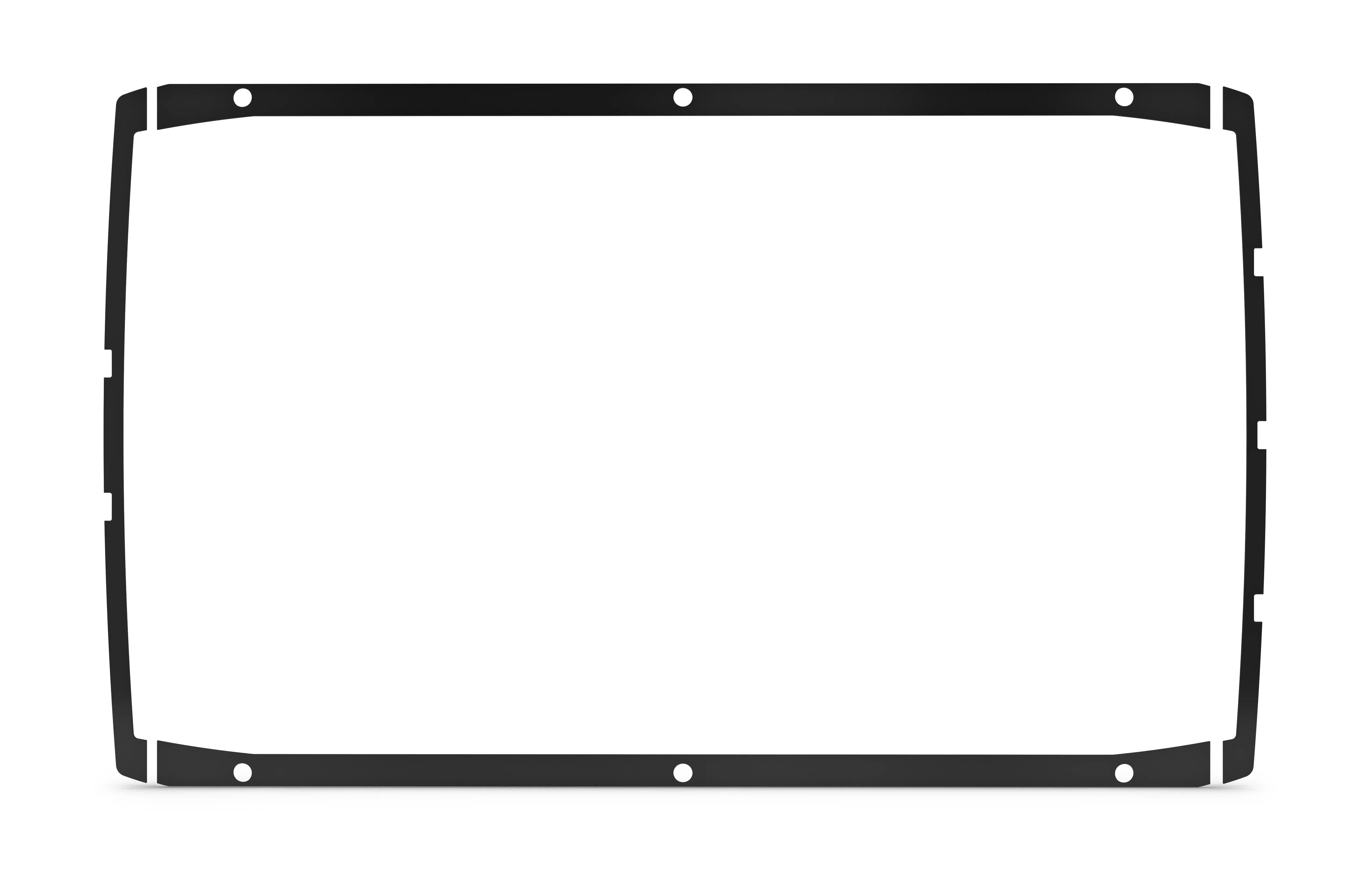

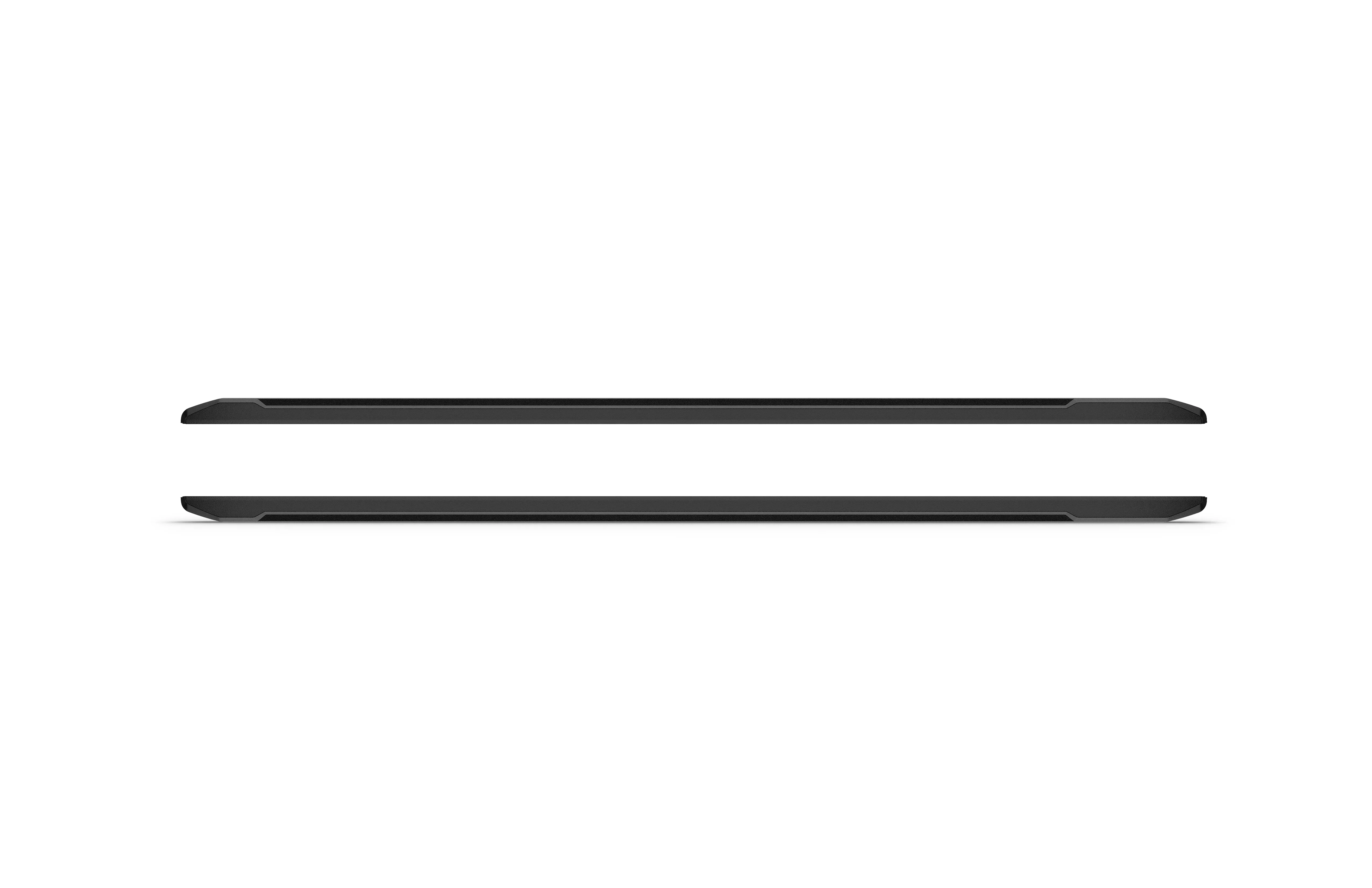

• Trim piece
• Accessories
• Manuals

Want the most accurate, versatile, and user-friendly navigation and sonar experience on the market? Then this is it: Garmin ECHOMAP Ultra 2 162sv Combo Device + GT56 Transducer. Order now and upgrade every moment on the water!
