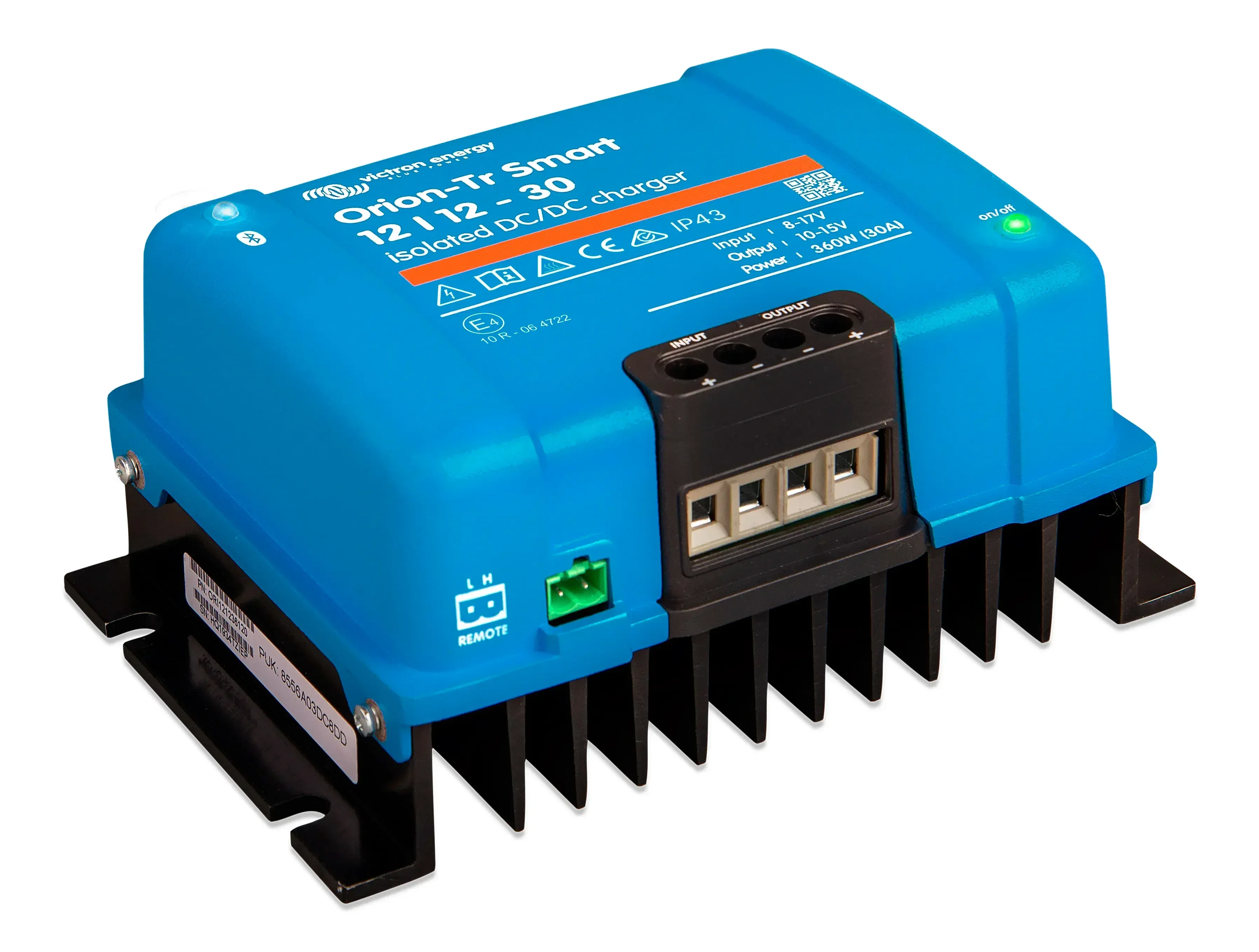

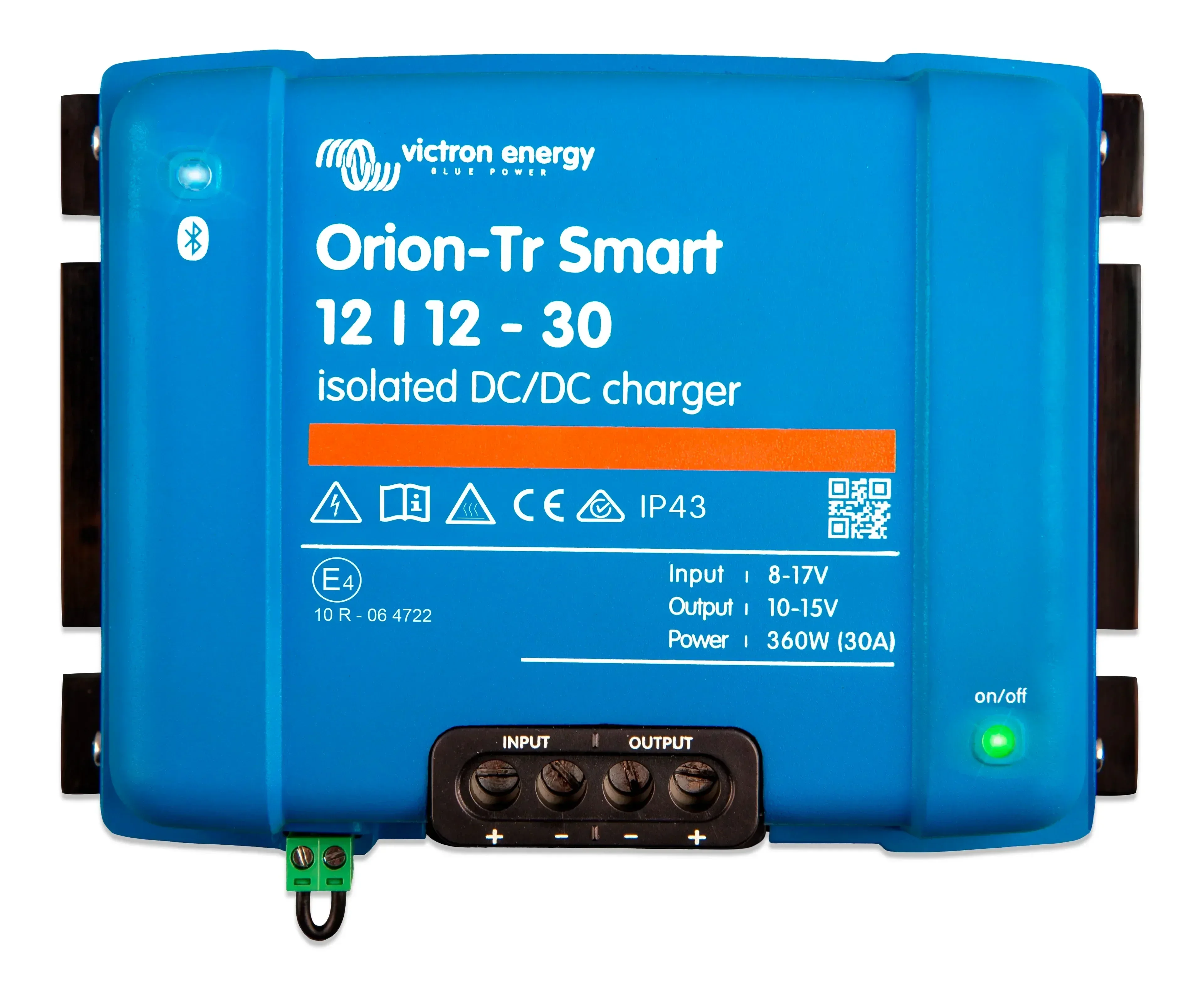

When you need a powerful and intelligent solution to manage a dual 12 V battery system, the Victron Orion-Tr Smart 12/12V 30A DC-DC Charger is an excellent choice. This professional-grade charger delivers reliable and efficient charging for both lead-acid and lithium batteries and features built-in Bluetooth for easy monitoring and configuration via mobile device.

The charger uses an adaptive 3-stage charging algorithm (Bulk – Absorption – Float) that optimizes charging based on battery type and condition, extending battery life and preventing overcharging. Engine-run detection ensures the charger only activates while driving, protecting the starter battery from discharge. It also includes remote on/off functionality for added convenience.

Built to handle high operating temperatures up to 55 °C (full power up to 40 °C), the Victron Orion-Tr Smart 12/12V 30A DC-DC Charger features a compact and lightweight design that installs easily in vehicles and boats.

Features:
• Input voltage range: 8–17 V
• Output voltage: 12.2 V (adjustable 10–15 V)
• Continuous charging current: 30 A
• Peak charging current (10 s): 40 A
• Efficiency: 87%
• Operating temperature: –20 °C to +55 °C (power derating above 40 °C at 3%/°C)
• Protection class: IP43 (electronics), IP22 (connection area)
• Galvanic isolation: 200 V DC between input/output and case
• Weight: 1.8 kg
• Dimensions (H x W x D): 130 x 186 x 80 mm
• DC connections: Screw terminals, max cable size 16 mm² (AWG6)
• Bluetooth: Built-in, controlled via VictronConnect app
• Engine-run detection and remote control
• Compatible with lead-acid and lithium batteries (not Rebelcell)

Choose the Victron Orion-Tr Smart 12/12V 30A DC-DC Charger to ensure smooth operation of your batteries and systems – wherever you are.
