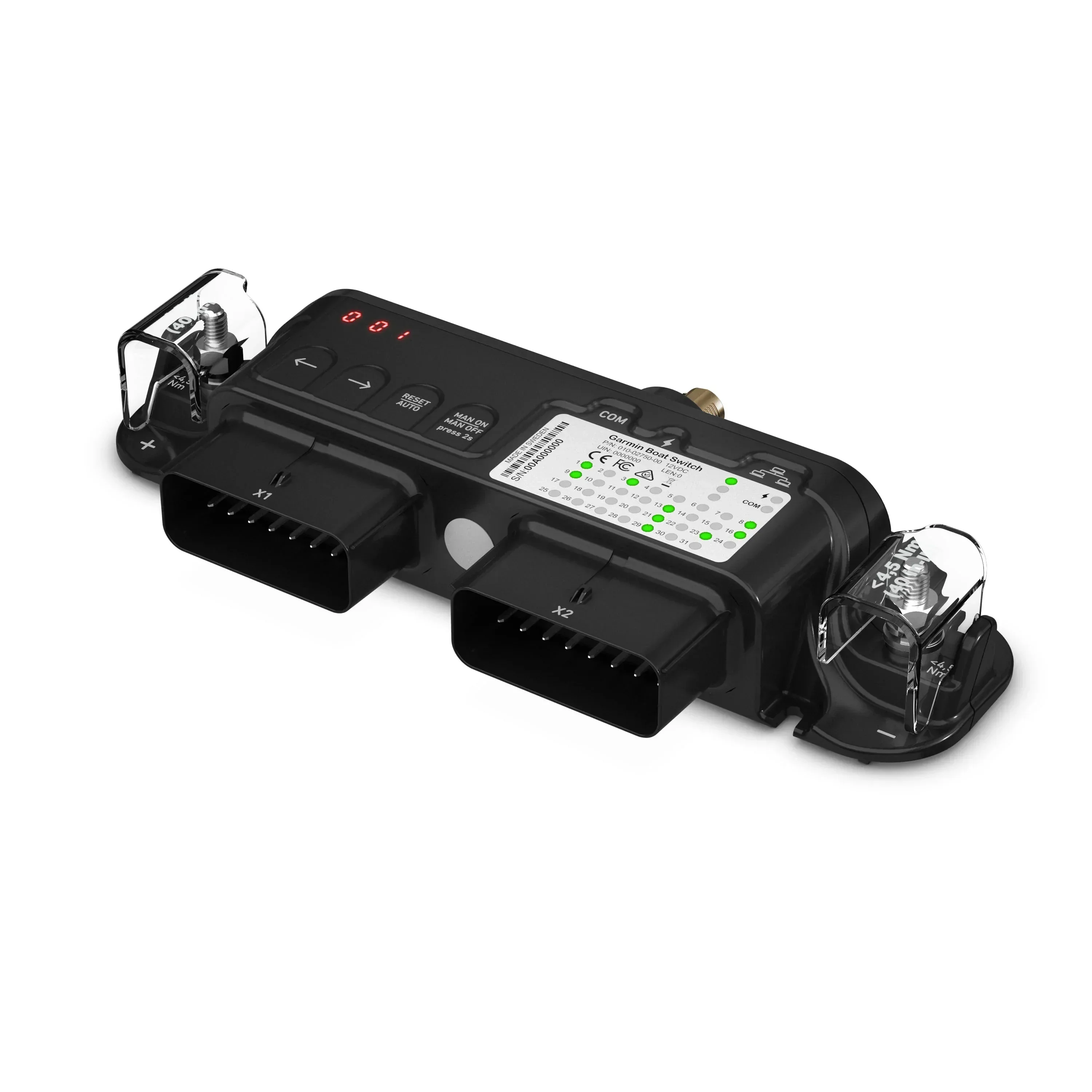

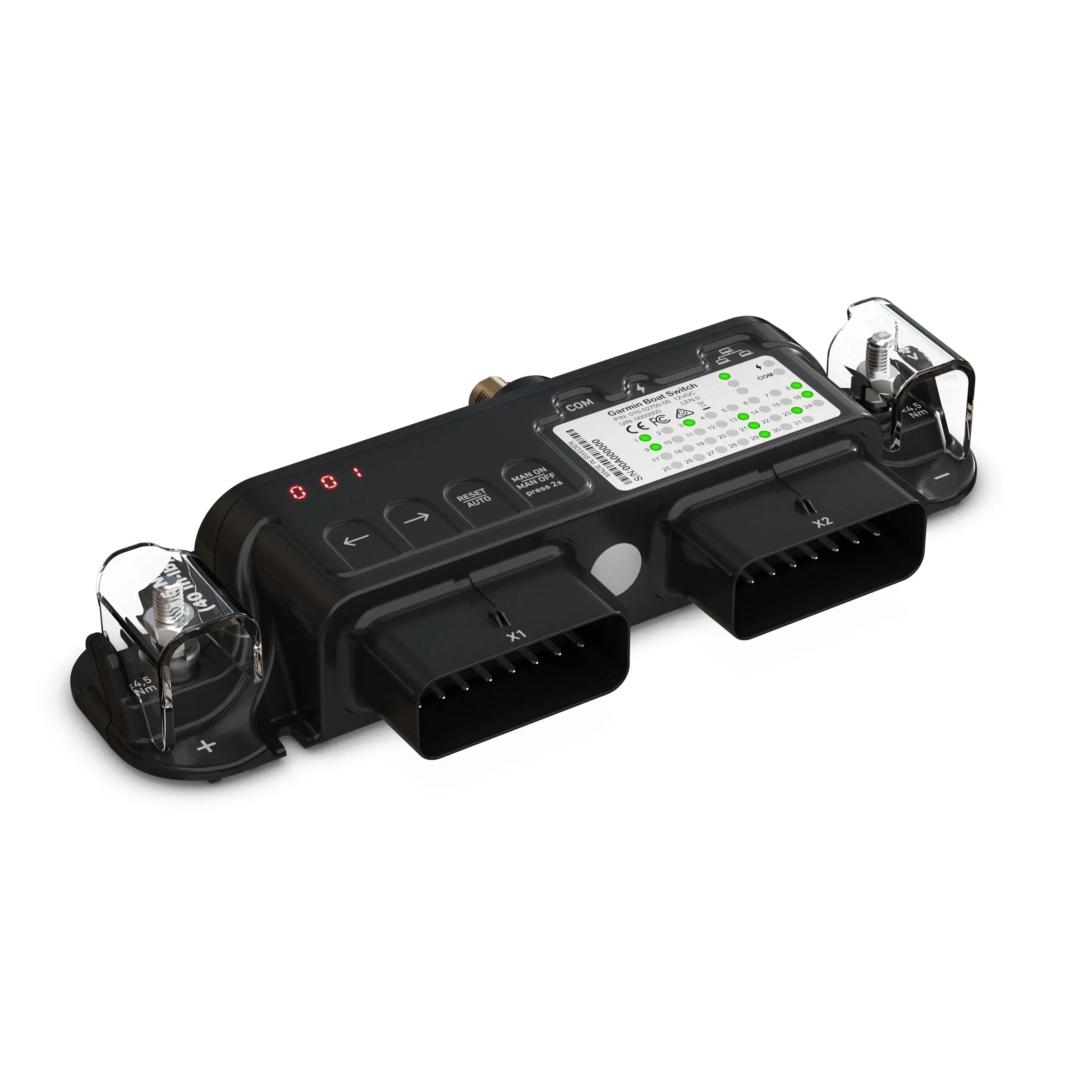

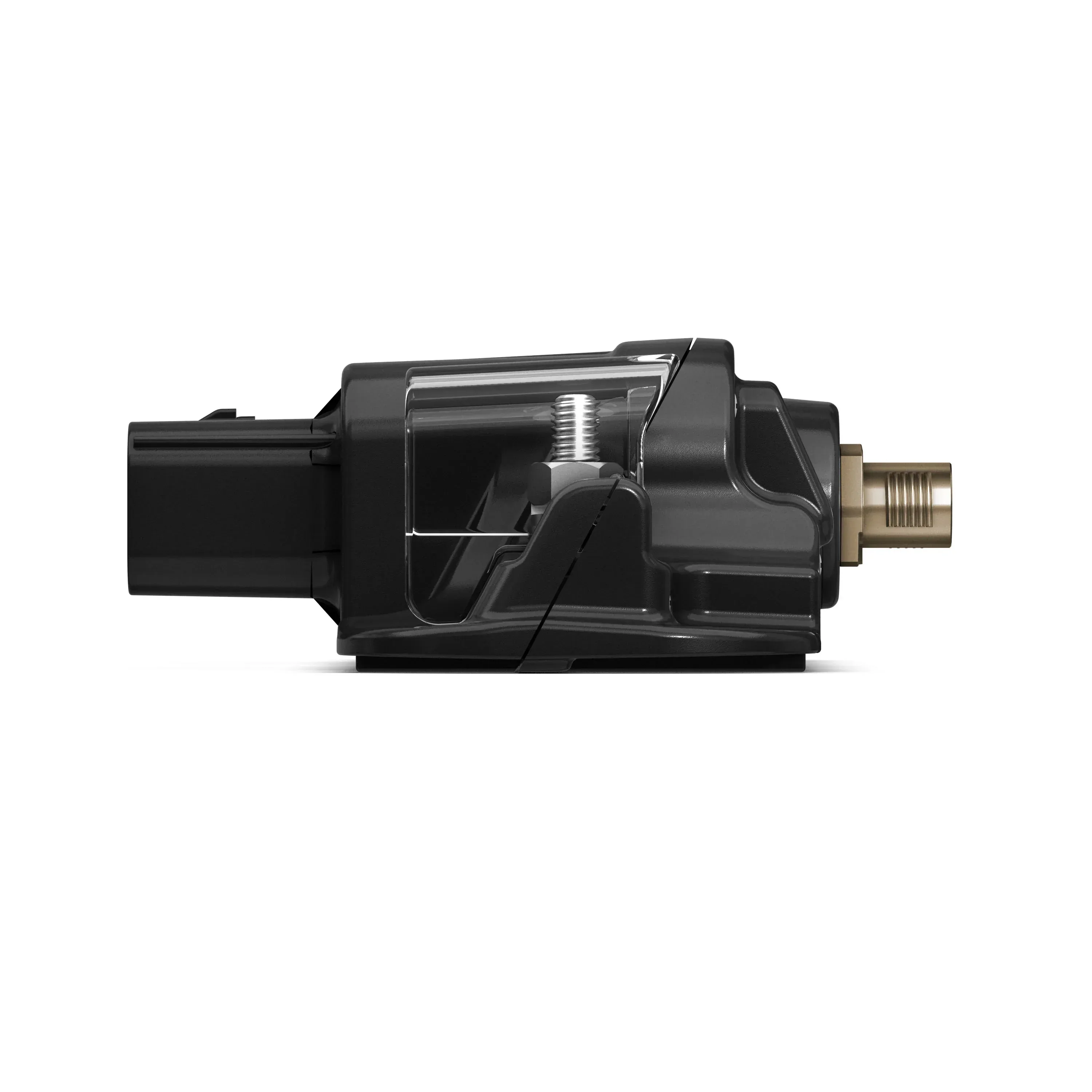

Garmin Boat Switch offers all-in-one boating experiences. The digital connection solution is ready for use straight out of the package. No need for setup or configuration. Get control and protection of up to 20 circuits through a compatible GPSMAP or ECHOMAP chartplotter rather than using physical buttons or switches. Boat Switch provides access to four different switch types including toggle outputs for bilge pumps and navigation lights, press-and-hold dimmers for interior lighting, press-and-release horn control, and a built-in livewell timer. The device allows you to monitor and calibrate the levels in up to four different tanks including fuel, freshwater, graywater, blackwater, or livewell tanks.

No special tools are required for installation. You can easily add and name switches through the screen of your chartplotter.

Key features:

• All-in-one system replaces existing fuse boxes and switches. Easier control and operation of onboard functions.
• CONTROL AND PROTECTION: Get control and protection of up to 20 circuits via your GPSMAP® or ECHOMAP™ chartplotter rather than a physical button or switch.
• WIDE RANGE OF SWITCHES: You have access to four different switch types including on/off switches, light controls, press-and-release switches, and timers for livewell and bilge pumps
• ADAPTIVE: Position and name switches your way with the easy-to-use interface. You can also remove switches easily where necessary
• MONITOR TANKS: The device allows you to monitor and calibrate the levels in up to four different tanks including fuel, freshwater, graywater, blackwater, or livewell

• EASY UPGRADE: Retrofit into existing boats without special tools, training, or configuration by using the included 18” flying leads and color-coded channel wires.

Included in the package:
• Garmin Boat Switch Unit, Garmin Boat Switch Wire Harness X1, Garmin Boat Switch Wire Harness X2, installation instructions

Made in Sweden.
Wiring manufactured in China
• Device dimensions (W x H x D): 230 x 106 x 38 mm. Device weight: 400 grams
• Operating temperature: -20...+55° C
• Waterproofing: IP65
• Connectivity: CAN-bus NMEA 2000® network, LEN-0
• Output High side 13 ch 10A, 7 ch 5A
• Digital input Earthing switch input 15
• Bilge pump monitoring
• Voltage 3 @ 0–16 V +/-1%, Resistance 2 @ 0–1,500 ohm +/- 5%
• Power source: Maximum current: 50A
• Power off current consumption: 60 mA
• Supply voltage (12V) 9–16 VDC
• Connector NMEA 2000 Micro 5-pin M12 male
• Channels Molex MX150 L 16 circuits
• Power terminal M6 bolt

Compatible products:
GPSMAP 8400/GPSMAP8600 CHARTPLOTTERS
GPSMAP 10X2/GPSMAP12X2 CHARTPLOTTERS
GPSMAP 7X3/GPSMAP9X3/GPSMAP 12X3 CHARTPLOTTERS
ECHOMAP ULTRA CHARTPLOTTERS
