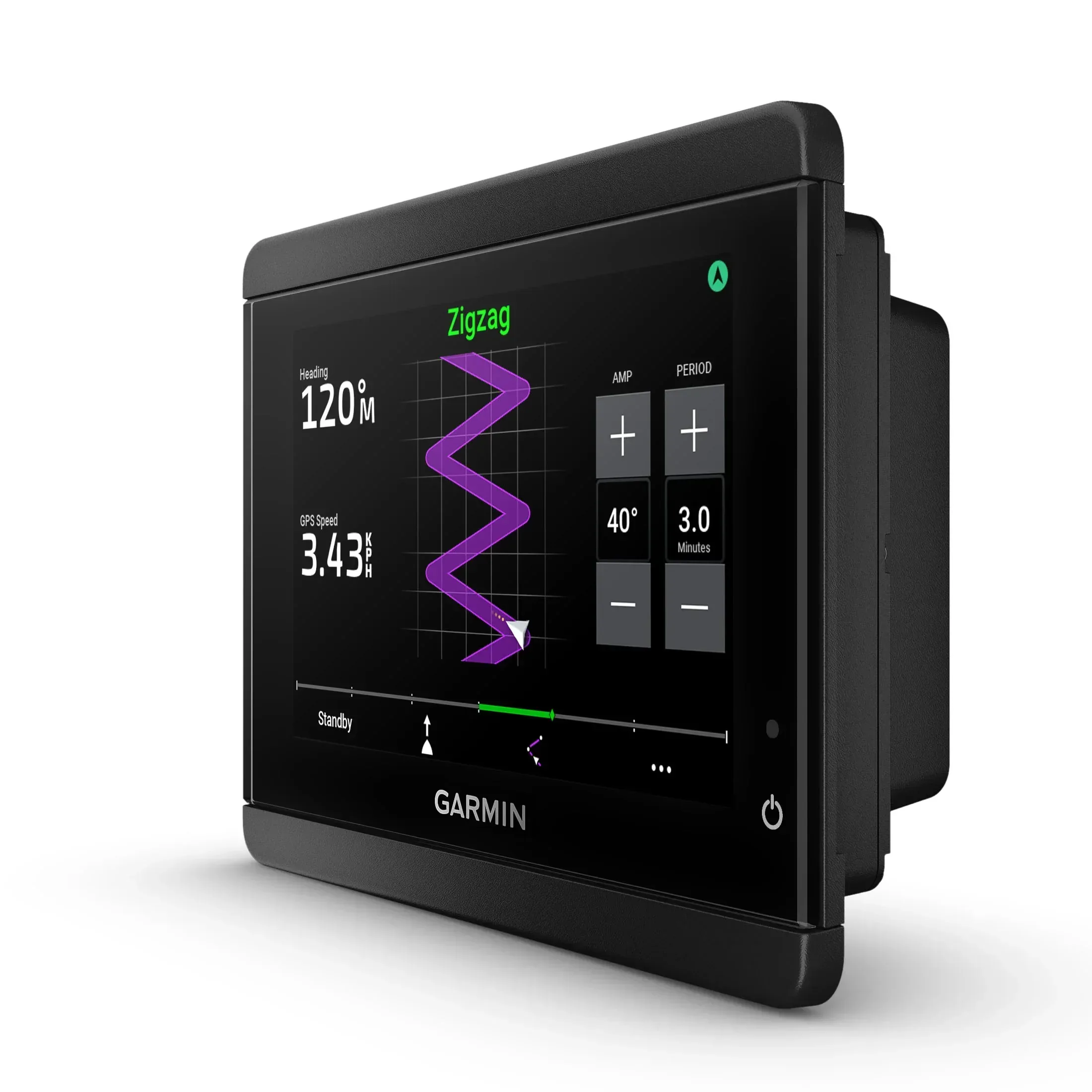

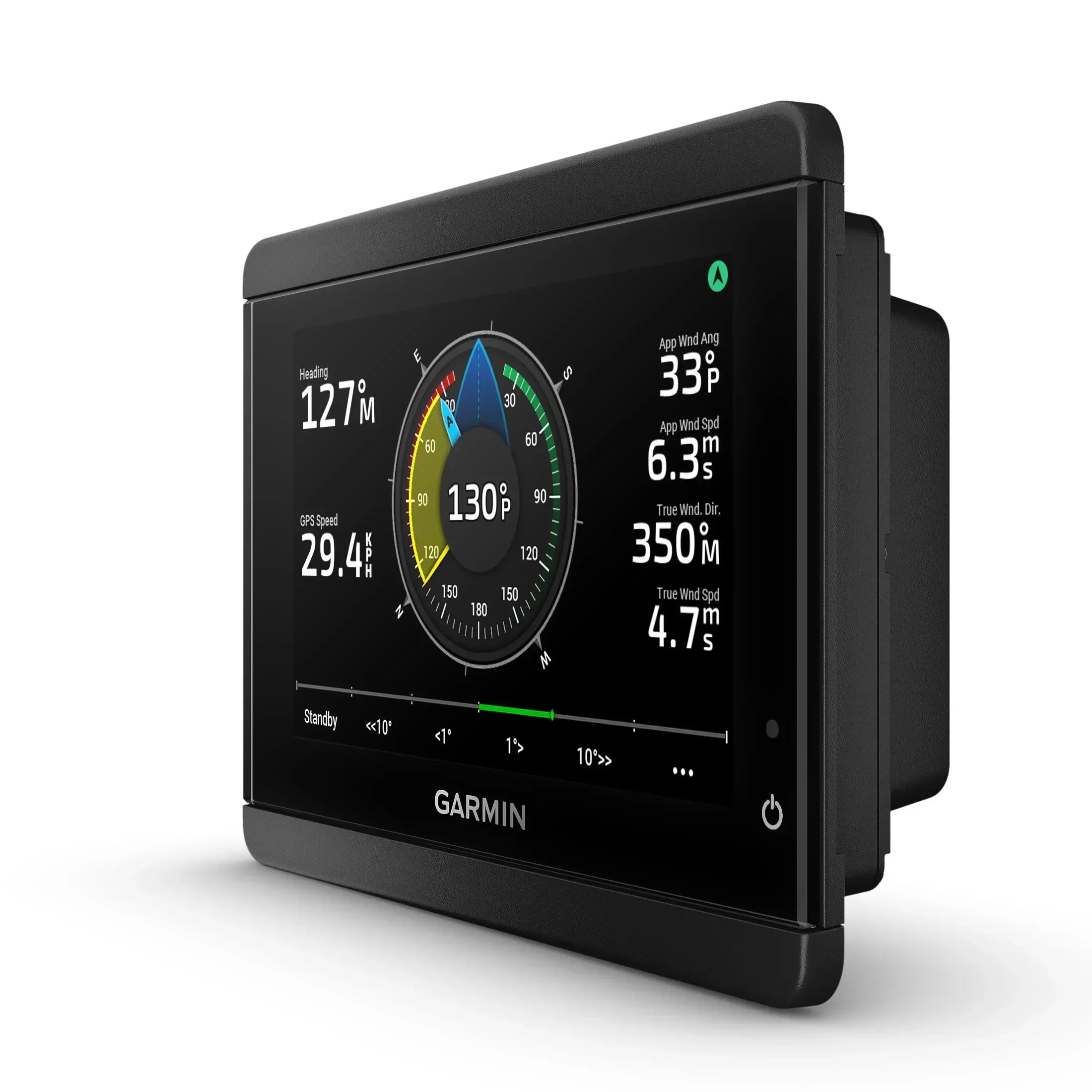

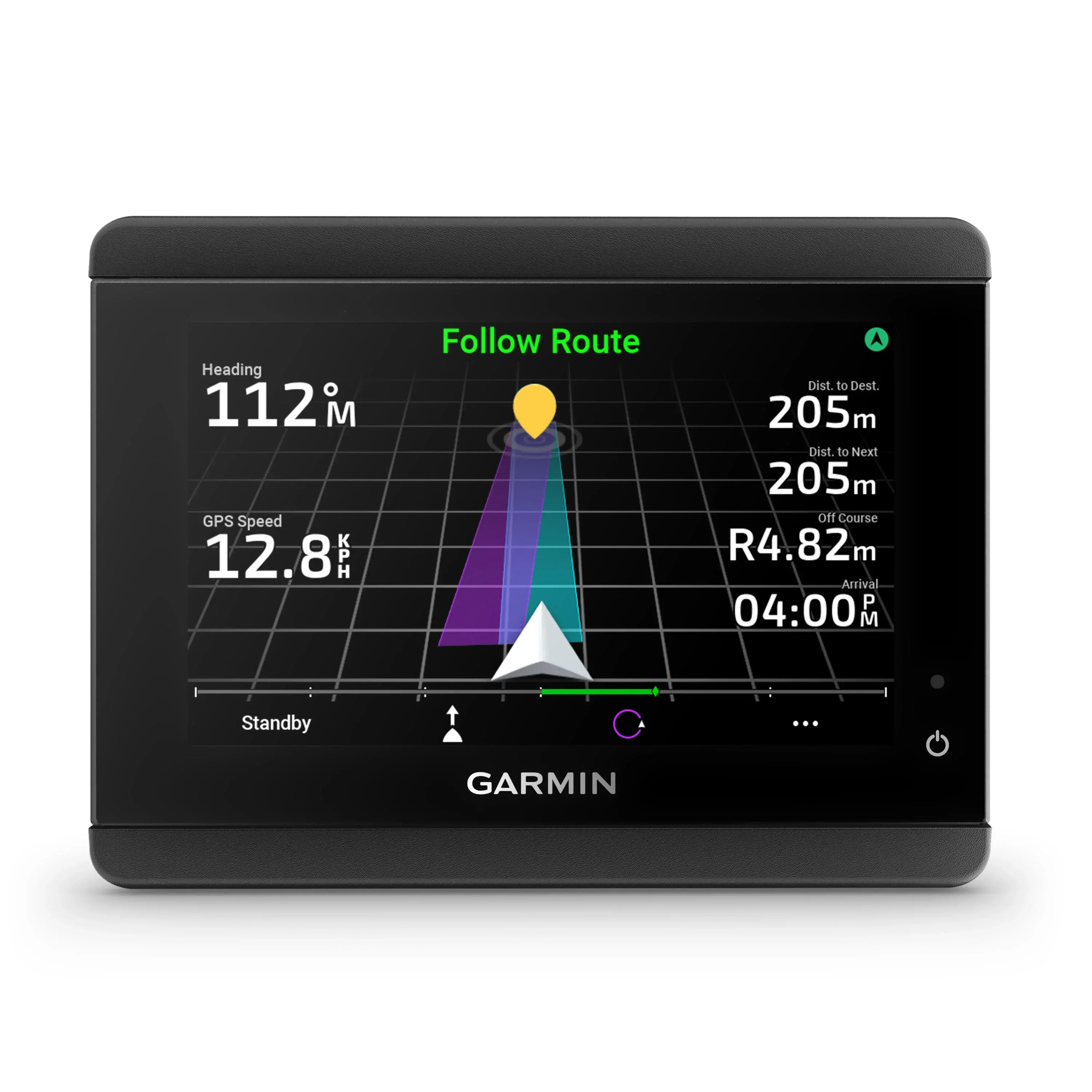

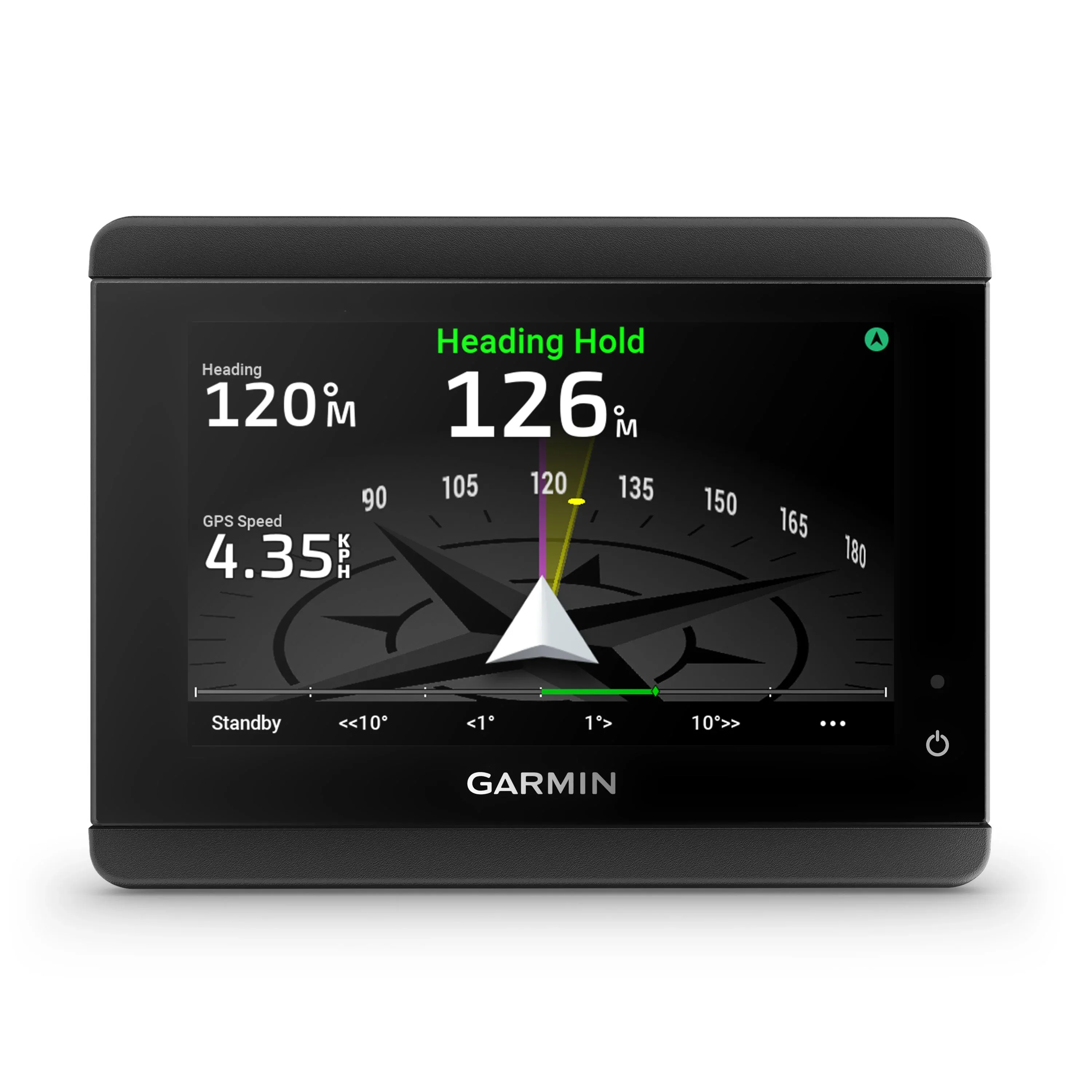

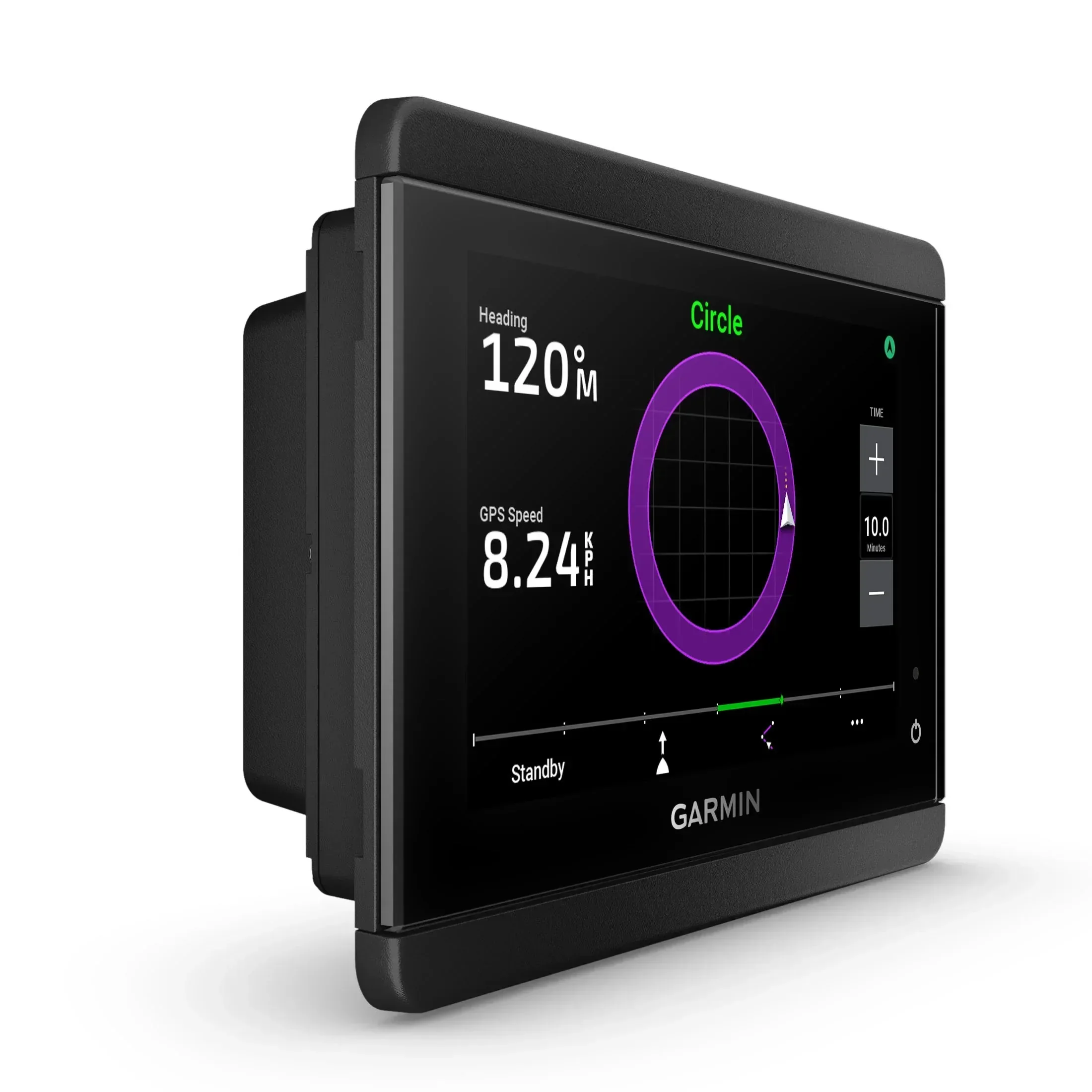

The GHC 50 autopilot instrument helps you navigate with ease — wherever the waters take you. The GHC 50 autopilot instrument enhances your autopilot experience. Equipped with a bright 5” screen, the easy-to-use device is the perfect companion for all waters. The edge-to-edge glass display ensures that the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP chartplotters, creating a stunning look for your helm. You can share your settings with other Garmin multifunction devices to create a single, highly-integrated system. You can choose between a wireless or wired remote control. Ethernet connection for network sharing and Wi-Fi connectivity. GHC 50 is compatible with all GHP Reactor autopilots.

Key features:
•Bright 5″ touchscreen display Call it navigating with a simple touch.
• Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
• Share settings with your Garmin MFDs, and watch your integrated system come to life.
• From the Garmin Marine Network (GMN) to wireless connectivity, there are many ways to connect to your autopilot.

Technical specifications:
• Dimensions: 105 x 140 x 51 mm (4.13 x 4.51 x 2.01 inches)
• Touchscreen display
• Screen resolution: 800 x 480
• Display type: WVGA
• Weight: 328 g (11.57 oz)
• Water rating: IPX7
• Mounting options: Flat or flush
• NMEA 2000 ports: 1
Garmin Marine Network ports: 1
• ANT+ (connectivity)
• Garmin Wi-Fi Network (local connection)
• Power input: 9–32 V DC
• Typical current draw at 12 VDC: 220 mA
• Maximum current draw at 12 VDC: 400 mA
• Maximum power usage at 10 VDC: 4.9 W

Included in the box:
• GHC 50
• Black trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• Garmin Marine Network cable
• Garmin Marine Network adapter cable
• NMEA 2000 drop cable
• NMEA 2000 T-connectors and terminators
• Documentation
