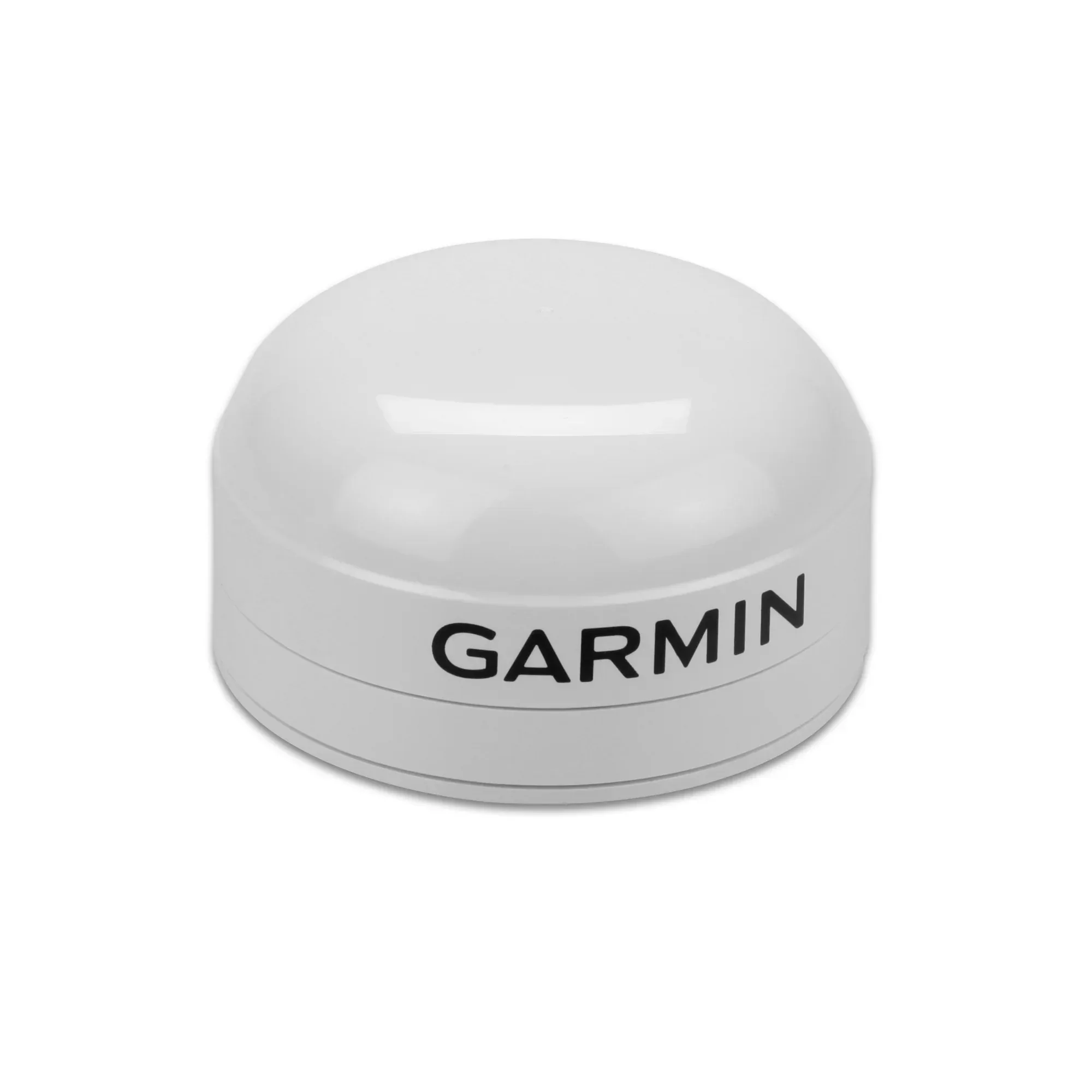

The GPS 24xd position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds. Navigate in more locations with expanded GNSS support. Get high-sensitivity tracking with fast GPS update rate and accurately pinpoint your heading — regardless of speed. It’s water-resistant (IPX7) to withstand the elements and easy to install with multiple mounting options. The antenna is compatible with NMEA 2000 devices.

Features:
• MULTI-BAND GNSS
Multi-band GNSS provides precise location accuracy to within 1 meter to compatible marine multifunction displays, instrument displays and autopilots.
• MAGNETIC HEADING The magnetic heading sensor provides accuracy to within 3 degrees, stabilizing charts, radar overlay and MARPA even at slow speeds.
• HIGH-SENSITIVITY GPS Fast 10 Hz position update rates provide high-sensitivity position, velocity and time data.
• EXPANDED GNSS SUPPORT GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo, GLONASS and BeiDou) to more accurately track in challenging conditions than GPS alone.
• MULTI-SBAS COMPATIBLE Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.

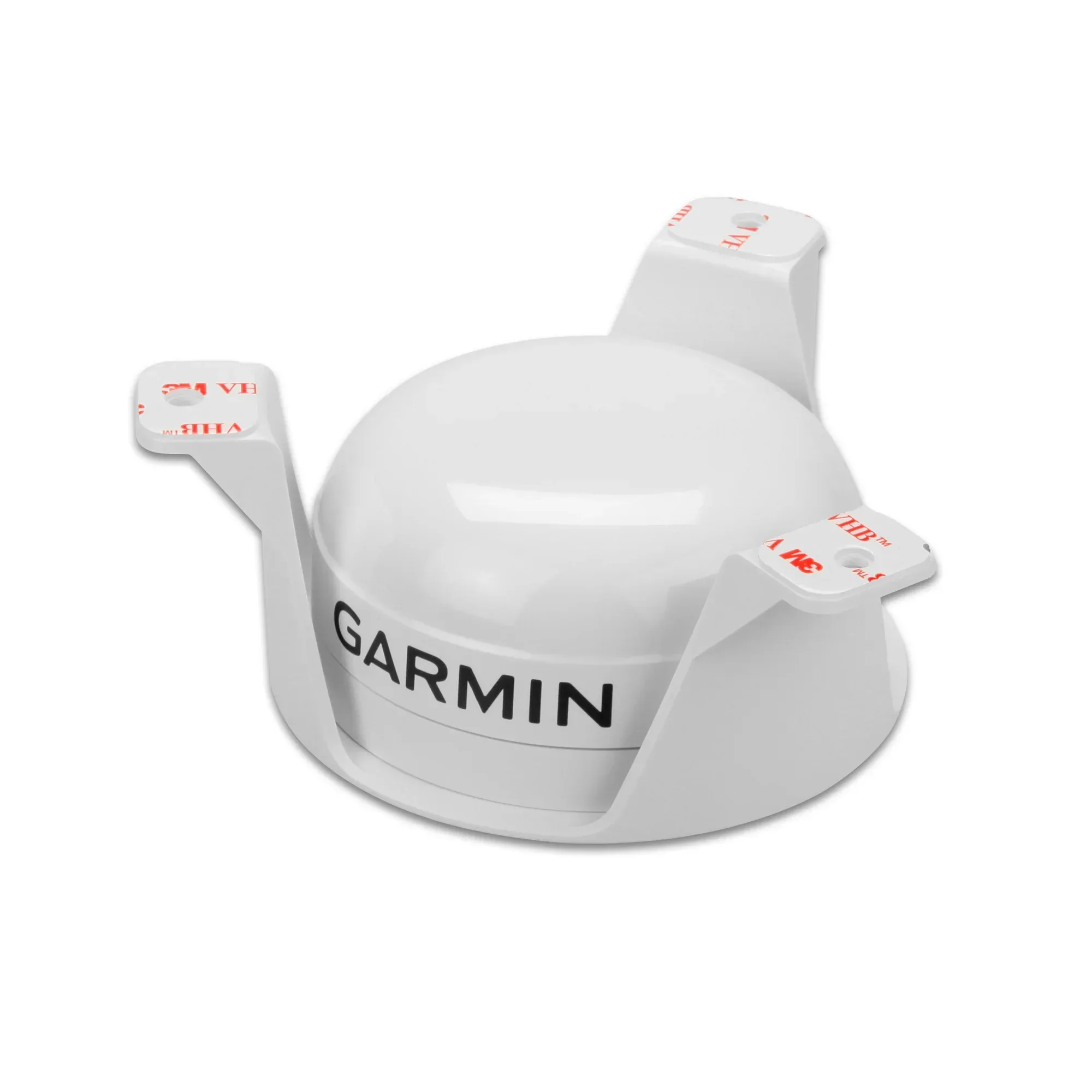

• MOUNTING OPTIONS Installation is easy with under-deck, pole and surface-mount options.

Technical specifications: • Dimensions (D x H): 91.6 x 49.5 mm
• Weight: 201 g
• Cable length: 6 m
• Temperature: -30...+80 °C
• Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 150 mm
• Power source input: 9-16 Vdc, unregulated
• Input current: 150 mA (12 Vdc)
• NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
• Position accuracy, typical marine use: < 50 cm , CEP 50%; < 1.0 m, 88%

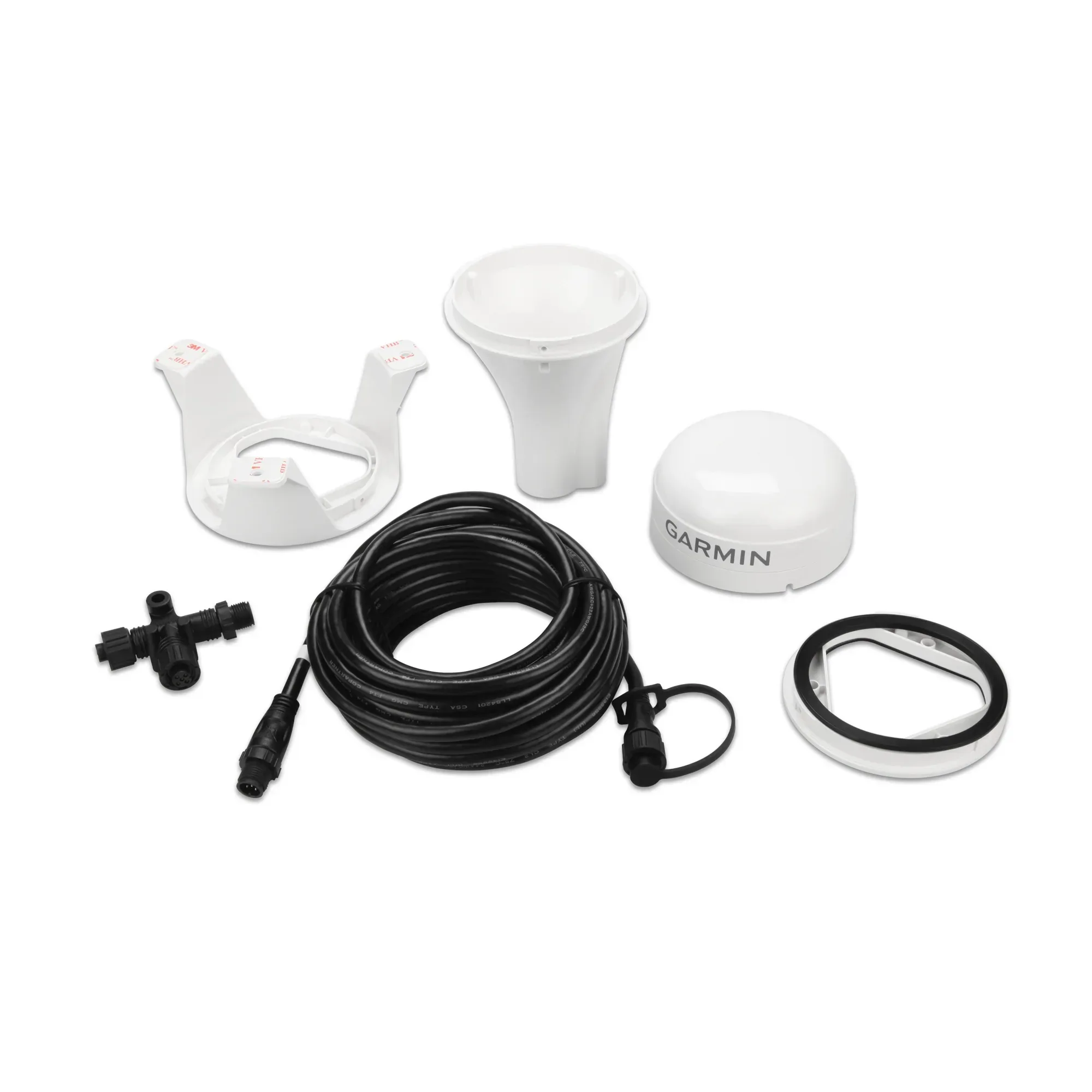

In the box:
• GPS 24xd NMEA 2000
• Pole mount
• Surface mount
• Under deck mount
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation<>

Check compatibility at www.garmin.com
