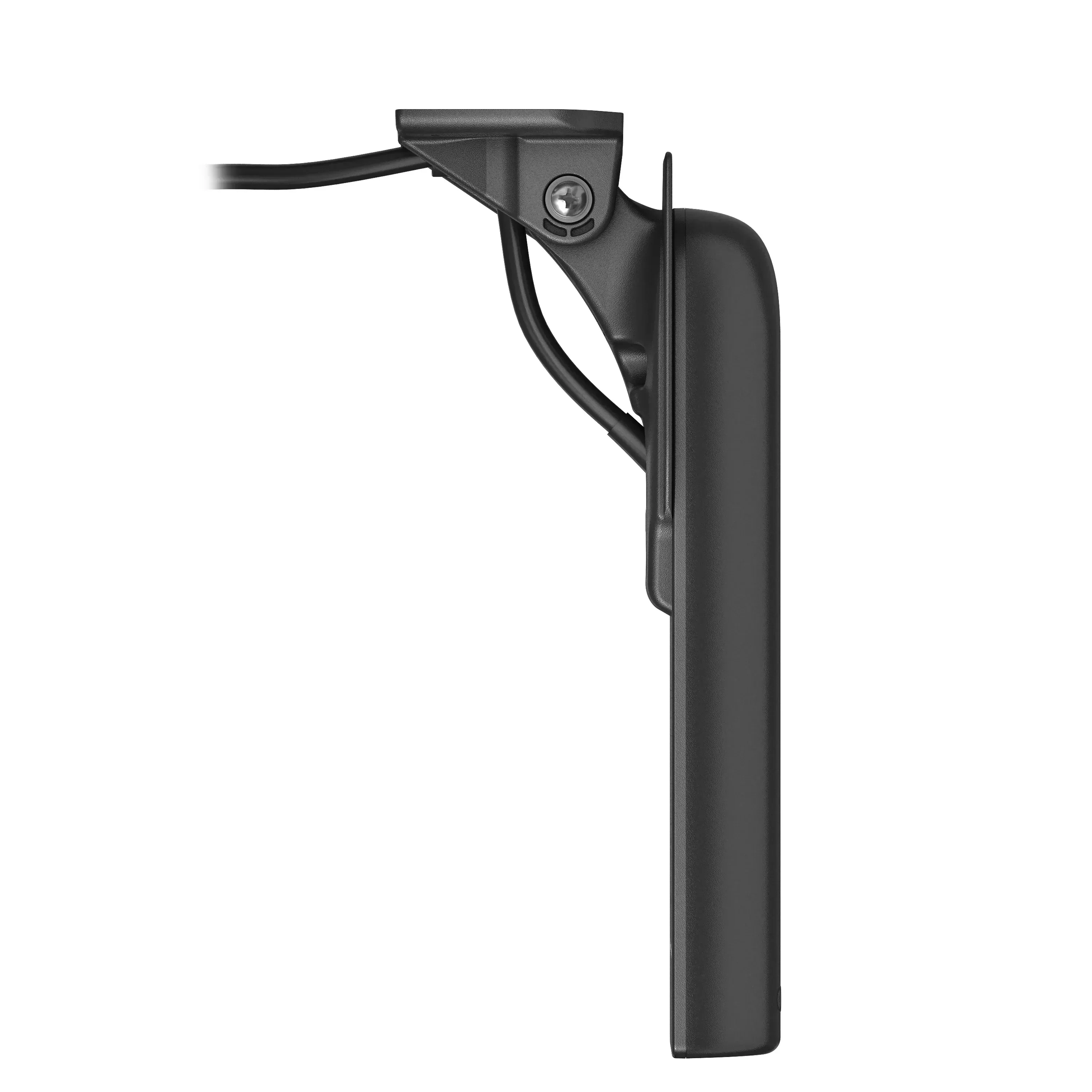

Garmin GT56UHD-TM is an ultra high-definition side-scanning transducer. Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before. Experience remarkably clear target separation and definition up to 800 feet (244 meters) below your boat.

Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths. High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. The transducer also includes a traditional CHIRP high wide sonar: (150–240 kHz). Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.

Specifications:
• Beamwidth: Traditional CHIRP: 24–16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
• Pin number 12
• Cable length: 7.62 m
• Frequency: Traditional high and wide CHIRP (150–240 kHz); ClearVü/SideVü 455 kHz (425–485 kHz), 800 kHz (790–850 kHz), 1000 kHz (940–1100 kHz)
• Depth and temperature
• Supported deadrise/Transom angles 0–70° transom angle
• Power: Traditional 350 W, ClearVü/SideVü 500 W
• Maximum depth: Traditional: 244 m (freshwater), ClearVü: 122 m, SideVü: 152 m

Included in the box:

• 12-pin transducer

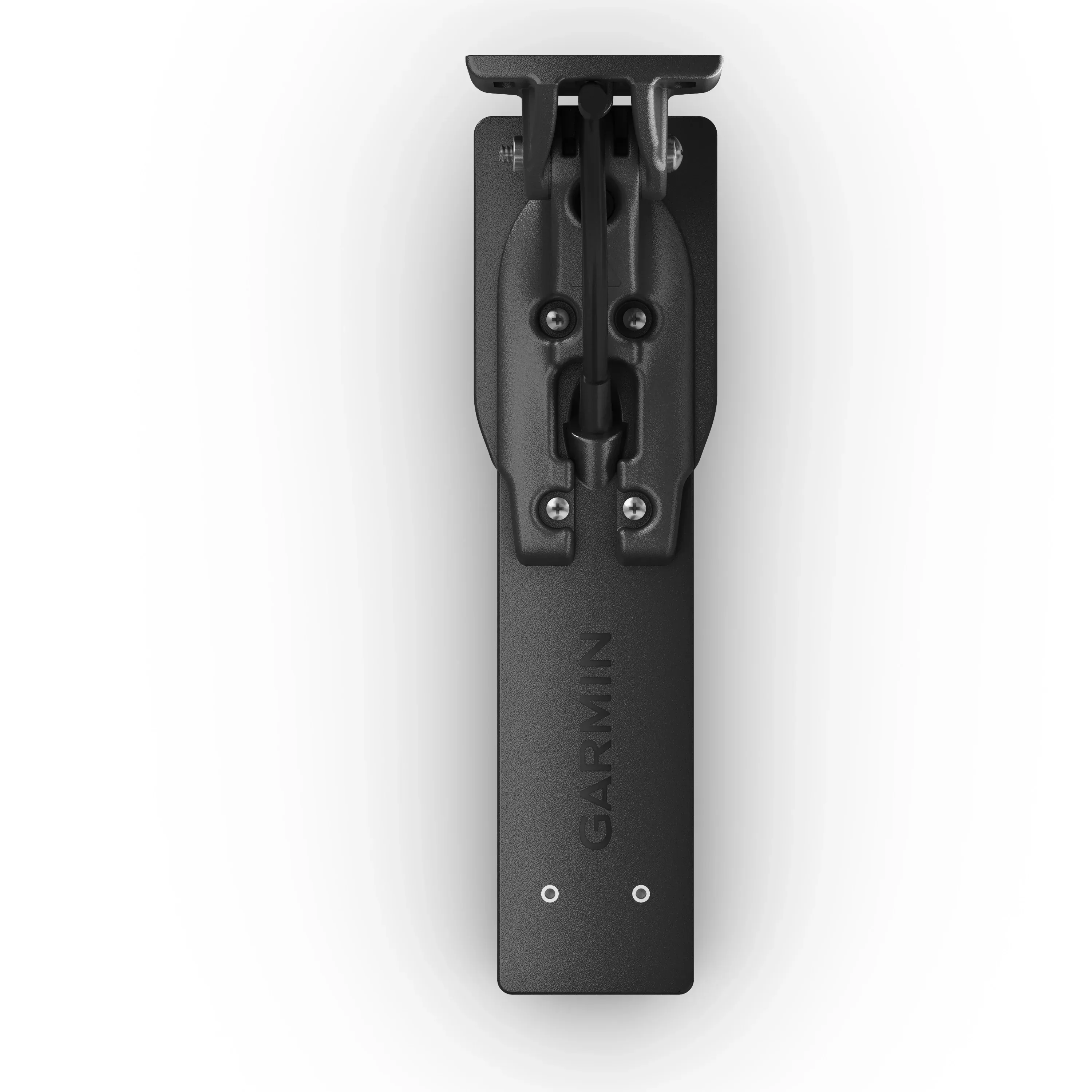

• Transom and trolling motor mounts
• Mounting hardware
