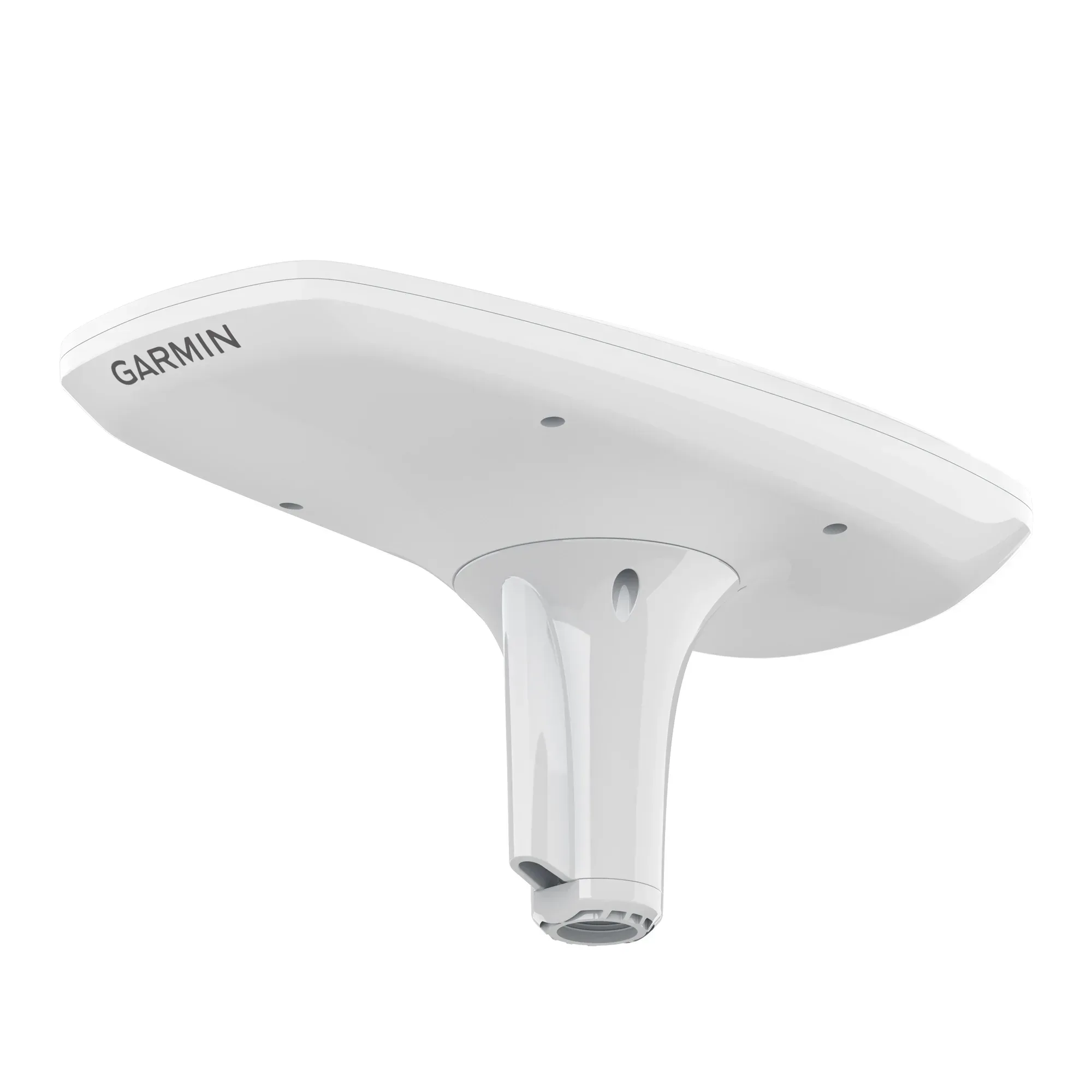

Garmin MSC 10 Marine Satellite Compass
Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass. Accuracy comes easy when you’ve got a multi-band GNSS receiver on board. Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too. Faster updates. More detailed tracking. If other onboard systems need a heading sensor, we’ve got you covered.
Features:
• MULTI-BAND GNSS AND MULTI-CONSTELLATION The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo, GLONASS and BeiDou) receiver delivers precise positioning.
• BOAT HEAVE AND MORE Get reliable, accurate boat heave, pitch and roll information — even in rough waters.
• BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS) With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns or standing still.
• ACCURATE HEADING DATA Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.
• PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.
• NMEA 2000® NETWORK COMPATIBLE Get heading, pitch, heel and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.
• EASY TO INSTALL This compact device is simple to install and easily integrates into your Garmin marine ecosystem.
• 10 HZ UPDATE RATE Get better, more detailed tracking information, thanks to the 10 Hz position update rate.
• BACKUP HEADING SENSOR In the extremely rare case that you lose satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading.
Technical specifications:
• Dimensions (W x D x H): 155.5 x 333.6 x 76.2 mm(6.1 x 13.1 x 3.0″)
• Weight: 810 g (28.6 oz)
• Cable length: 6 meters (19 feet 8 inches)
• Temperature: -15...+70 °C (5...158 °F)
• Case material: Glue sealed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 0 mm (0″)
• Power source input: 9–32 Vdc, unregulated
• Input current: 180 mA (12 Vdc)
• NMEA 2000 Load Equivalency Number (LEN): 6 (300 mA max)
• Position accuracy, typical marine use: < 1 meter CEP, < 3 meters 95%
• Heading accuracy: 2° RMS
• Heave accuracy: 8 cm RMS
In the box:
• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation
Check compatibility at www.garmin.com
Features:
• MULTI-BAND GNSS AND MULTI-CONSTELLATION The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo, GLONASS and BeiDou) receiver delivers precise positioning.
• BOAT HEAVE AND MORE Get reliable, accurate boat heave, pitch and roll information — even in rough waters.
• BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS) With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns or standing still.
• ACCURATE HEADING DATA Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.
• PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.
• NMEA 2000® NETWORK COMPATIBLE Get heading, pitch, heel and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.
• EASY TO INSTALL This compact device is simple to install and easily integrates into your Garmin marine ecosystem.
• 10 HZ UPDATE RATE Get better, more detailed tracking information, thanks to the 10 Hz position update rate.
• BACKUP HEADING SENSOR In the extremely rare case that you lose satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading.
Technical specifications:
• Dimensions (W x D x H): 155.5 x 333.6 x 76.2 mm(6.1 x 13.1 x 3.0″)
• Weight: 810 g (28.6 oz)
• Cable length: 6 meters (19 feet 8 inches)
• Temperature: -15...+70 °C (5...158 °F)
• Case material: Glue sealed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 0 mm (0″)
• Power source input: 9–32 Vdc, unregulated
• Input current: 180 mA (12 Vdc)
• NMEA 2000 Load Equivalency Number (LEN): 6 (300 mA max)
• Position accuracy, typical marine use: < 1 meter CEP, < 3 meters 95%
• Heading accuracy: 2° RMS
• Heave accuracy: 8 cm RMS
In the box:
• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation
Check compatibility at www.garmin.com
$1,038.79
Garmin MSC 10 Marine Satellite Compass—
$1,038.79
