Raymarine AXIOM+ 12 is the next-generation combination unit that delivers unmatched performance, sharp image quality, and smart features for demanding boat owners. With a crystal-clear 12-inch IPS display, a powerful quad-core processor, and support for advanced equipment, this is more than just a chartplotter – it’s the heart of your navigation system. Whether you’re exploring archipelagos or navigating open seas, Axiom+ offers safety, precision, and ease of use in all conditions.

Customize your AXIOM+ 12 with radar, thermal cameras, AIS, or ClearCruise augmented reality solutions to make your navigation even more sophisticated. With its advanced technology and future-proof design, it’s ready to meet all your needs on the water.

KEY FEATURES

Superfast Performance:
• Quad-core processor: Delivers fast response and seamless chart processing.

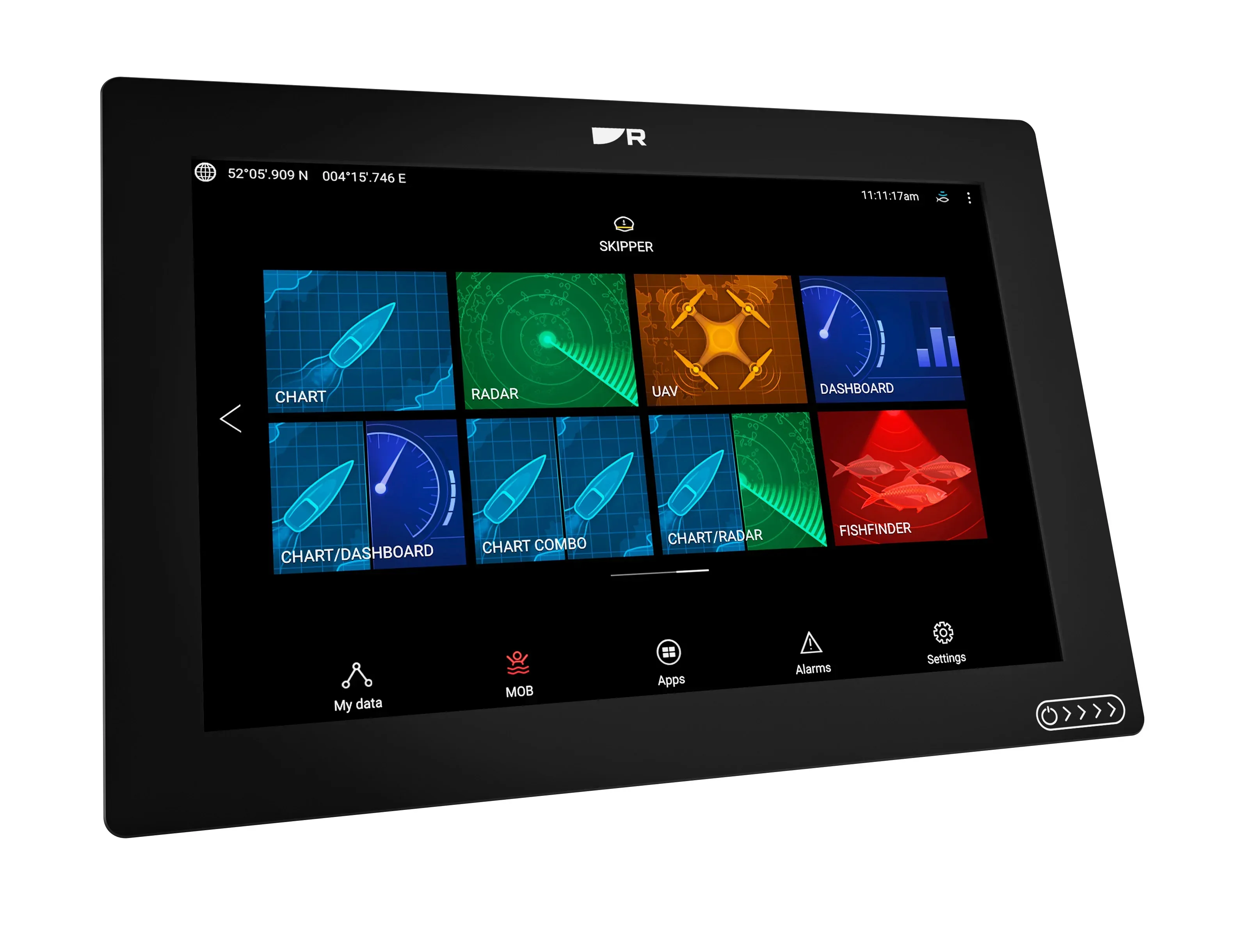

• LightHouse OS: An intuitive operating system supporting Navionics, C-MAP, and LightHouse charts.
• Internal storage: 16 GB (14 GB available) to store your data and apps.
• Ethernet and NMEA 2000 compatibility: Easily expand the system with additional displays, radar, and cameras.

Brilliant Display for All Weather Conditions:

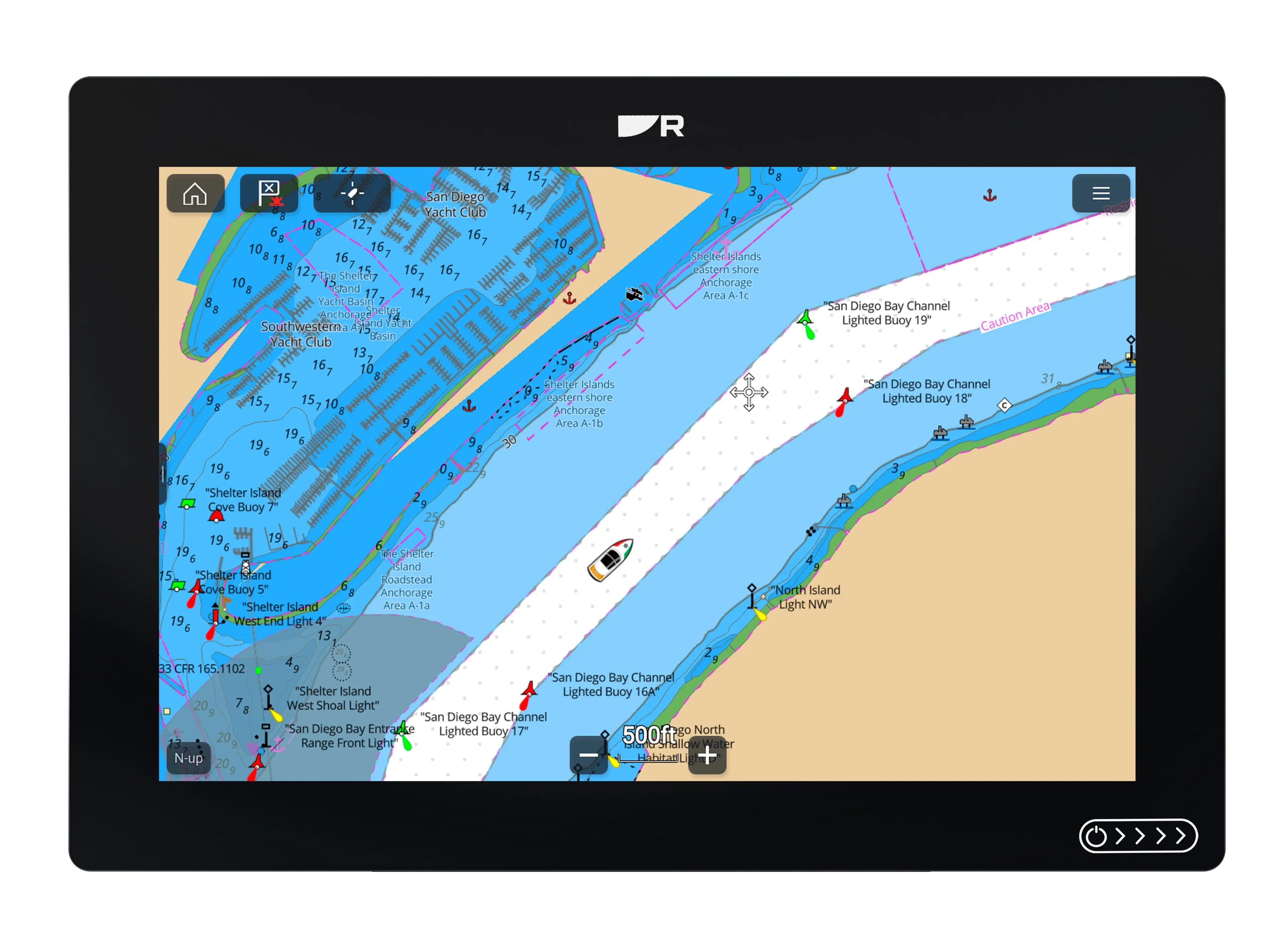

• 12-inch IPS display: WXGA HD resolution (1280 x 800) with vibrant colors and excellent contrast.
• HydroTough™ technology: Dirt-resistant coating ensures smooth touchscreen operation, even when the screen is wet.
• High brightness: At 1800 nits, the display is 25% brighter than previous models and works perfectly in direct sunlight.
• Customizable color themes: Day, dusk, and night modes for optimal visibility in any lighting conditions.

Accurate GPS Positioning:
• GNSS compatibility: Works with GPS, GLONASS, and Beidou systems.
• Fast position updates: Tracks up to 28 satellites and provides accurate positioning within ≤ 5 meters (with SBAS support).
• Built-in GPS antenna: High sensitivity, starting up in less than 2 minutes.

Expandable and Smart:
• ClearCruise Augmented Reality: Visualize AIS contacts, waypoints, and route information directly over live video.
• Radar support: Compatible with Quantum and Cyclone radars featuring advanced Doppler tracking.
• AIS integration: Safely monitor and track vessels, even in busy waterways.
• Wireless connectivity: Built-in Wi-Fi and Bluetooth for seamless software updates and accessory connections.

TECHNICAL SPECIFICATIONS:

Device:
• Connections: Micro-B USB, RayNet Ethernet (10/100 Mbits/s), 25-pin RealVision sensor.
• Wireless technology: Bluetooth V4.0 and Wi-Fi 802.11/b/g/n.
• Internal storage: 16 GB with MicroSDXC support for additional memory.
• Power consumption: 18.96 W.
• Operating voltage: 8–16 VDC.

Display:
• Size: 12 inches (WXGA 1280 x 800).
• Brightness: 1800 nits.
• Type: IPS display with HydroTough coating.
• Color depth: 24-bit.

GPS:
• Accuracy: ≤ 5 meters (SBAS).
• SBAS support: WAAS, EGNOS, MSAS, GAGAN, QZSS.
• Channels: Tracks up to 28 satellites.

Package Contents:
• Raymarine AXIOM+ 12 with pre-installed LightHouse map for Northern Europe.
• Mounting bracket with knobs.
• Sun cover.
• Flush-mount hardware.
• 4 screws (M5x58) and 4 wing nuts (M5).
• NMEA 2000/power cable (1.5 m power cable and 0.5 m NMEA 2000 cable).
• DeviceNet to SeaTalkng adapter cable (120 mm).
• Panel mounting gasket.
• Documentation and user manual.

Note: Register the product on Raymarine's website within 90 days of purchase to extend the standard warranty from 2 years to 3 years.
