Raymarine AXIOM+ 12 RV takes your boating and fishing adventures to the next level by combining cutting-edge RealVision™ 3D CHIRP sonar technology with the intuitive LightHouse operating system. This award-winning chartplotter delivers a brighter, faster, and more powerful navigation experience, specifically designed for demanding users. Whether you’re exploring uncharted waters, chasing trophy fish, or enhancing safety in busy waterways, the AXIOM+ 12 RV has everything you need.

Raymarine AXIOM+ 12 RV is the most versatile combo device on the market, offering everything a boater or angler could wish for. The RealVision™ 3D sonar transforms how you see the underwater world, while the high-resolution IPS display and lightning-fast processor make navigation and fish tracking smooth and accurate.

Choose Raymarine AXIOM+ 12 RV and elevate your boating and fishing trips to an uncompromising and efficient new level.

KEY FEATURES

RealVision™ 3D CHIRP Sonar – See the underwater world like never before
• RealVision 3D: Gyro-stabilized, GPS-locked depth modeling delivers a three-dimensional view of the seabed and water column.

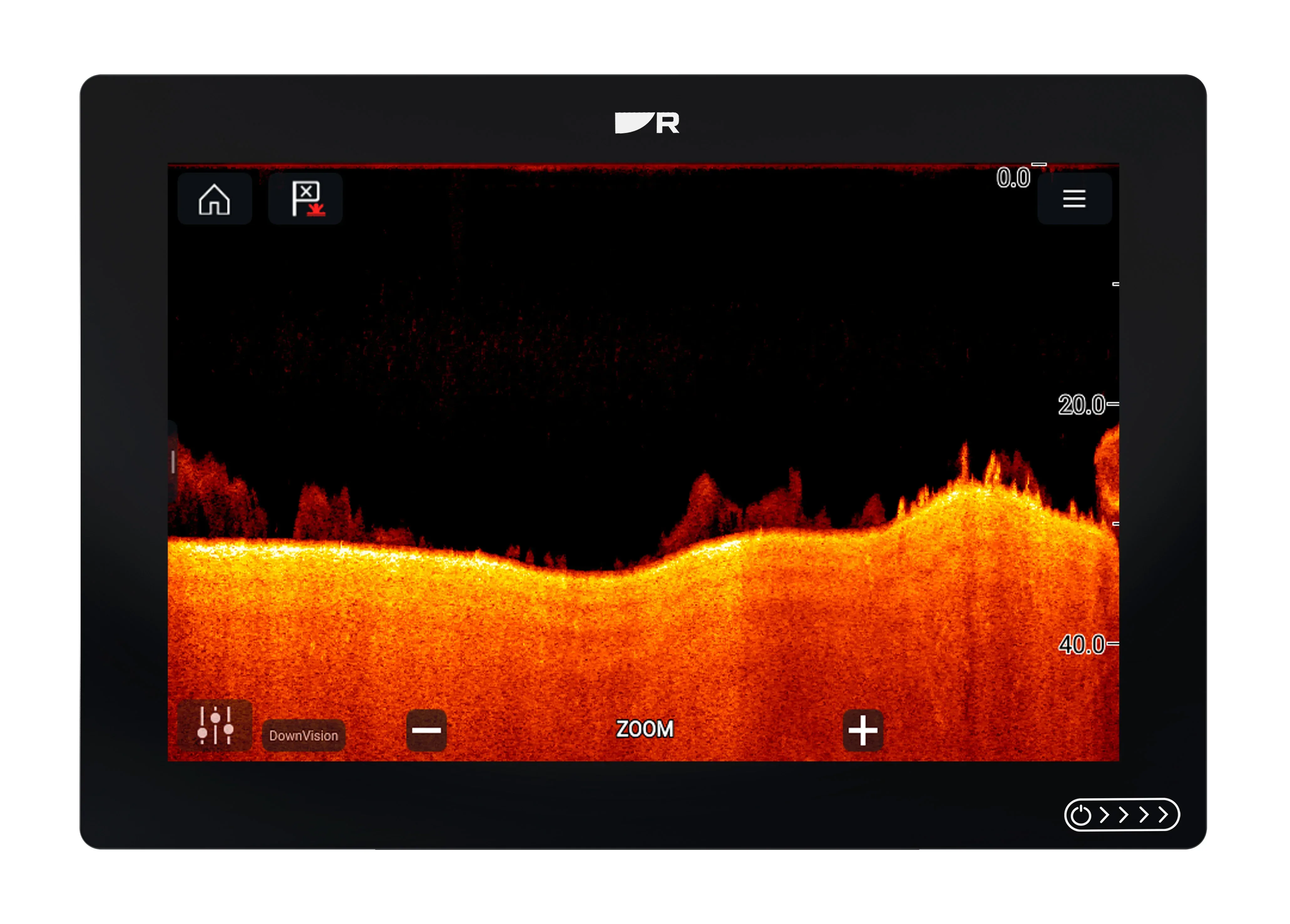

• CHIRP DownVision: High-resolution views of structures, fish habitats, and underwater objects.
• CHIRP SideVision: Scan wider to detect structures and objects alongside your boat.
• Traditional CHIRP Sonar: Accurate fish and bottom identification.
• 600W Digital Sonar: Supports frequencies of 50 kHz and 200 kHz and can be extended to lower frequencies for deep-sea fishing.

Display – Maximum Brightness and Visibility
• 12-inch IPS display: WXGA 1280 x 800 resolution with vivid colors and enhanced contrast.
• HydroTough™ coating: Repels water, oil, and dirt, ensuring precise touchscreen control even when wet.
• Brightness: Up to 1800 nits, 25% brighter than the previous model – perfect for direct sunlight.
• Day, Dusk, and Night Modes: Enhanced color themes for optimal visibility in any lighting conditions.

Powerful and Expandable Performance
• Quad-Core Processor: Lightning-fast response and smooth chart processing.
• LightHouse Operating System: Compatible with LightHouse, Navionics, and C-MAP charts for effortless navigation and route planning.
• Expandable Network: Create a system with multiple displays, radar, engines, and accessories like FLIR thermal cameras and ClearCruise augmented reality.
• Wireless Connectivity: Bluetooth V4.0 and Wi-Fi for seamless software updates and accessory connections.

GPS and Navigation
• GNSS Support: Compatible with GPS, GLONASS, and Beidou systems.
• Precision: ≤ 5 meters (with SBAS support).
• Positioning Time: Less than 2 minutes from cold start.
• AIS Support: Enhances safety in busy waterways.

TECHNICAL SPECIFICATIONS

Sonar Depth Range:
• High CHIRP: 0.6 m – 274 m.
• DownVision: 0.6 m – 183 m.
• SideVision: 0.6 m – 91 m.
• RealVision 3D: 0.6 m – 91 m.

Device:
• Connections: Micro-B USB, RayNet Ethernet, 25-pin RealVision connector.
• Wireless: Bluetooth V4.0 and Wi-Fi 802.11/b/g/n.
• Memory: 16 GB internal, MicroSDXC card slot for external expansion.

Display:
• Size: 12 inches (WXGA 1280 x 800).
• Brightness: 1800 nits.
• Touchscreen: Supports simultaneous multitouch.

Operating Environment:
• Temperature Range: Operation: -25 – +55 °C, Storage: -30 – +70 °C.
• Waterproofing: IPX6 and IPX7.

Package Contents:
• Raymarine AXIOM+ 12 RV multifunction display with pre-installed LightHouse chart for Northern Europe.
• Built-in RealVision 3D sonar.
• 1-Year Premium Subscription for LightHouse charts.
• Mounting bracket with knobs.
• Sun cover.
• Flush mounting brackets.
• 4 threaded screws (M5x58).
• 4 wing nuts (M5).
• NMEA 2000/power cable (1.5 m power cable and 0.5 m NMEA 2000 cable).
• DeviceNet to SeaTalkng adapter cable 120 mm.
• Panel mounting gasket.
• Documentation and manuals.

Note: Register your product on Raymarine's website to extend the warranty from 2 years to 3 years if registration is completed within 90 days of purchase.
